32 · Brakes

Sensor – ABS – rear (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
BrakesSensor – ABS – rear · page 2 of 2

Refit

  1. Position mounting rubbers to modulator. Switch - Hill descent control
  2. Position modulator to mounting bracket, tighten nuts to 9 Nm (7 lbf.ft).

$% 70.70.11

  1. Clean brake pipe unions.
  2. Connect brake pipe unions to modulator

Remove

ensuring pipes are connected to their correct ports.

  1. Tighten 13 mm unions to 22 Nm (16 lbf.ft) and 11 mm unions to 14 Nm (10 lbf.ft).
  2. Connect multiplugs to modulator.
  3. Bleed brakes. BRAKES, ADJUSTMENTS, Brake system bleeding.
  4. To ensure correct operation, the ABS system MUST be tested using TestBook.

Refit

To ensure correct operation, the ABS system MUST be tested using TestBook.

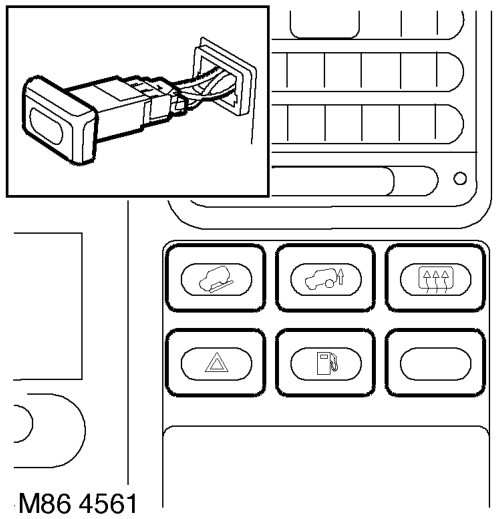

  1. Carefully remove switch.
  2. Disconnect multiplug from switch.
  3. Remove switch.
  4. Connect multiplug switch.
  5. Position switch and push to secure.
