Housing - caliper - front

Refit

1. Clean mating faces of alternator and vacuum pump.
2. Fit vacuum pump to alternator and tighten bolts to 8 Nm (6 lbf.ft).
3. Position alternator to engine and connect multiplug.
4. Connect vacuum hose and oil drain hose to vacuum pump and secure clips.
5. With assistance align alternator to mounting bracket and fit but do not tighten bolt.
6. Fit bolt securing support stay to alternator and tighten to 25 Nm (18 lbf.ft) .
7. Tighten bolt securing alternator to mounting bracket to 45 Nm (33 lbf.ft).
8. Using new 'O' ring, connect oil supply pipe to cylinder head and tighten to 10 Nm (7 lbf.ft).
9. Connect lead to alternator and tighten nut to 6 Nm (4.4 lbf.ft).
10. Fit auxiliary drive belt tensioner and tighten bolt to 50 Nm (37 lbf.ft).
11. Fit auxiliary drive belt. CHARGING AND STARTING, REPAIRS, Belt - auxiliary drive.

Housing - caliper - front

$% 70.55.24

Remove

1. Raise front of vehicle, one side.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove road wheel(s).
3. Clamp brake hose to prevent fluid loss.

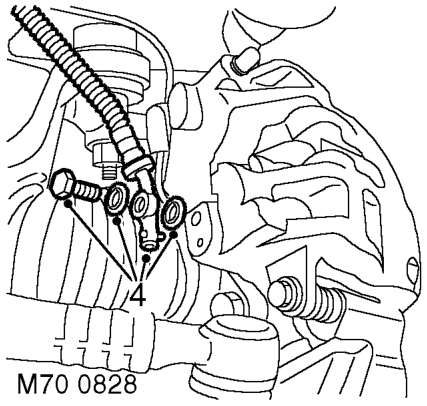

4. Remove brake hose banjo bolt and discard sealing washers.

CAUTION: Always fit plugs to open connections to prevent contamination.

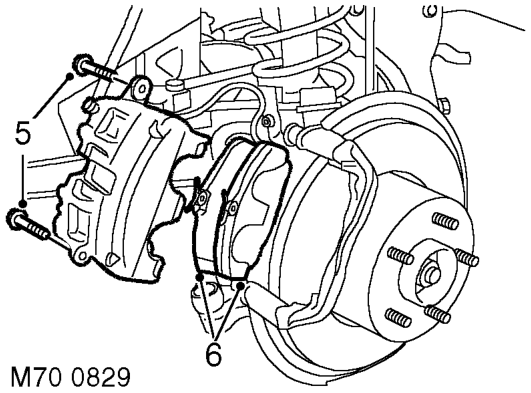

5. Remove 2 guide pin bolts and remove caliper housing from carrier.
6. Remove 2 brake pads from caliper carrier.
