Housing - caliper - front (page 2 of 2)

Refit

1. Rotate disc by hand and scrape all scale and Housing - caliper - rear rust from around edge of disc. Clean location surfaces on caliper bracket.

$% 70.55.25

2. Clean dust from brake parts using brake cleaning fluid.

Remove

WARNING: Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.

3. Fit brake pads to caliper carrier.
4. Position caliper housing to carrier, align flats on guide pins with caliper housing.
5. Fit guide pin bolts and tighten to 30 Nm (22 lbf.ft).
6. Clean banjo bolt and fit new sealing washers.
7. Position hose to caliper and tighten banjo bolt to 32 Nm (24 lbf.ft).
8. Remove clamp from brake hose.
9. Bleed brake system. BRAKES, ADJUSTMENTS, Brake system bleeding.
10. Fit road wheel(s) and tighten nuts to 140 Nm (103 lbf.ft).
11. Remove stand(s) and lower vehicle.
1. Raise rear of vehicle, one side.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove road wheel(s).
3. Clamp brake hose to prevent fluid loss.

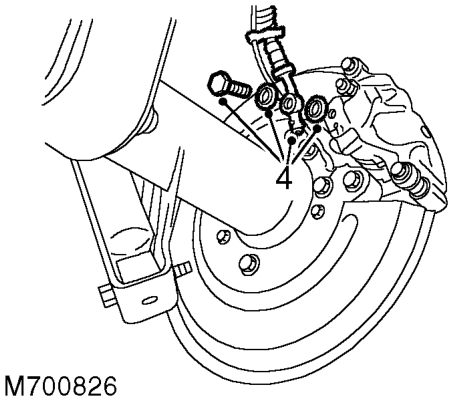

4. Remove brake hose banjo bolt and discard sealing washers.

CAUTION: Always fit plugs to open connections to prevent contamination.

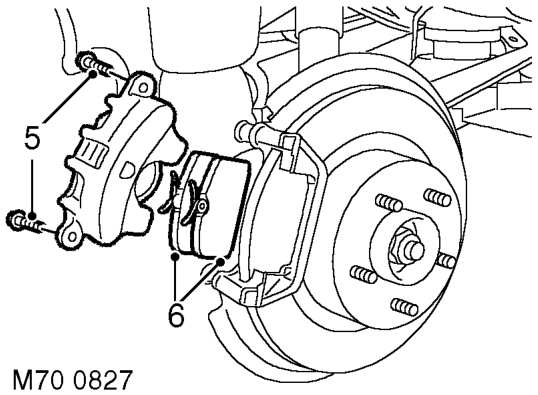

5. Remove 2 guide pin bolts and remove caliper housing from carrier.
6. Remove 2 brake pads from caliper carrier.
