Glow plugs

Glow plugs

$% 19.60.31

Remove

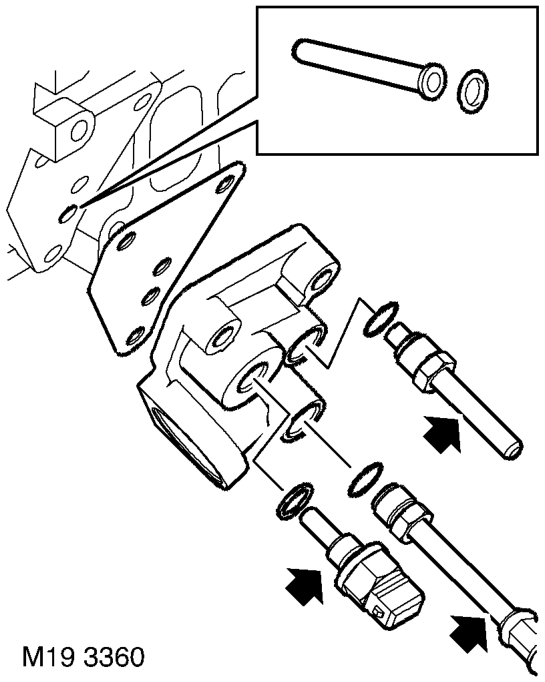

11. Remove fuel temperature sensor and discard sealing washer.
12. Remove fuel hose and fuel pipe and discard 'O' rings.

Refit

1. Clean fuel pressure regulator and mating face.
2. Clean fuel pipe unions.
3. Using new 'O' rings, fit fuel pipe and fuel hose Refit

to pressure regulator and tighten unions to 25 Nm (18 lbf.ft).

4. Using new sealing washer, fit fuel temperature sensor and tighten to 14 Nm (10 lbf.ft).
5. Fit new fuel filter and 'O' ring.
6. Using a new gasket, position pressure regulator and tighten bolts to 25 Nm (18 lbf.ft).
7. Connect multiplug to fuel temperature sensor.
8. Connect fuel hoses to pressure regulator and fuel cooler.
9. Fit engine lifting eye and tighten bolts to 25 Nm (18 lbf.ft).
10. Fit engine acoustic cover and tighten bolts to 10 Nm (6 lbf.ft).
11. Connect battery earth lead.
12. Fit battery cover and secure fixings.
1. Remove 3 bolts and remove engine acoustic cover.
2. Release turnbuckles and remove battery cover.
3. Disconnect battery earth lead.

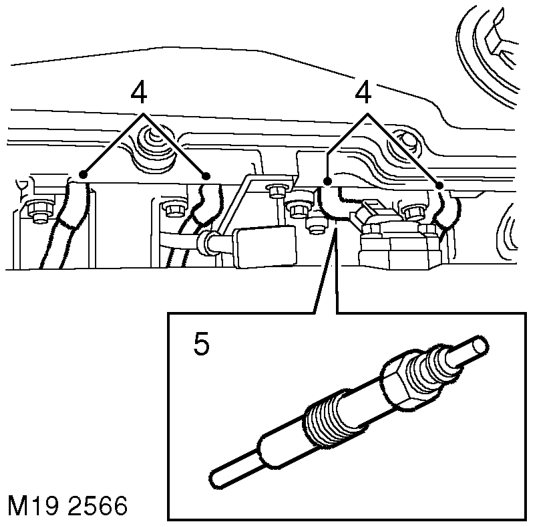

4. Disconnect 4 glow plug leads.
5. Loosen and remove 4 glow plugs.
1. Thoroughly clean glow plugs and seating area in cylinder head.
2. Apply a suitable anti-sieze compound to threads of glow plugs.
3. Fit glow plugs and tighten to 16 Nm (12 lbf. ft).
4. Connect glow plug leads.
5. Fit engine acoustic cover and secure fixings.
6. Connect battery earth lead.
7. Fit battery cover and secure fixings.
