Sensor - Throttle position (TP)

Sensor - Throttle position (TP)

$% 19.30.14

The TP sensor is integral with the throttle pedal assembly and must be renewed as an assembly.

Three track TP sensors were introduced from VIN 297137.

Three track TP sensors cannot be fitted to vehicles previously fitted with two track TP sensors.

Remove

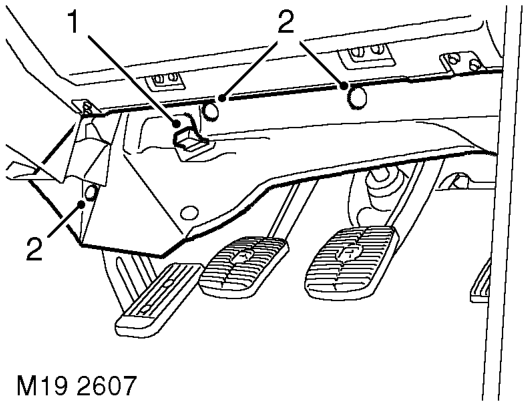

1. Release diagnostic socket from driver's closing Refit

panel.

2. Remove 3 trim retaining studs and remove closing panel.

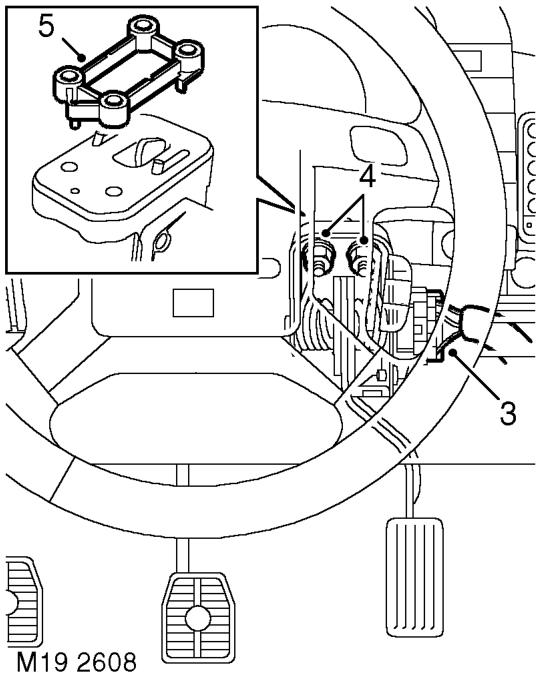

3. Disconnect multiplug from TP sensor, release harness from throttle pedal bracket and position harness aside..
4. Remove 2 nyloc nuts and remove throttle pedal assembly. Discard nuts.
5. Remove spacer block from pedal bracket.
1. Position spacer block to pedal bracket.
2. Position throttle pedal assembly and tighten new nyloc nuts to 13 Nm (10 lbf.ft).
3. Fit and secure harness to pedal bracket and connect multiplug to TP sensor.
4. Position closing panel, connect diagnostic socket and fit retaining studs.
