Land Rover Discovery II (UK)13 · Engine management system - Td5
13 · Engine

Injectors

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Injectors
Engine management system - Td5Injectors · page 1 of 2

Injectors

$% 19.60.12

Remove

  1. Remove cooling fan. COOLING SYSTEM - Td5, REPAIRS, Fan - viscous.
  2. Remove rocker shaft. ENGINE - Td5, REPAIRS, Rocker shaft assembly.
  3. Position container to catch fuel spillage.
Injectors – Position container to catch fuel spillage.

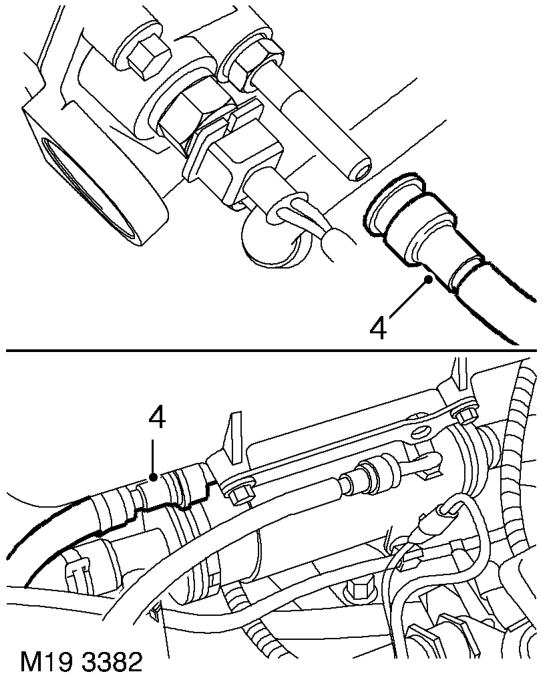

  1. Disconnect quick release fuel hose connectors from fuel connector block on cylinder head and fuel cooler to drain fuel from cylinder head.
Injectors – Disconnect quick release fuel hose connectors from fuel connector block on cylinder head a
  1. Disconnect 5 multiplugs from injectors.

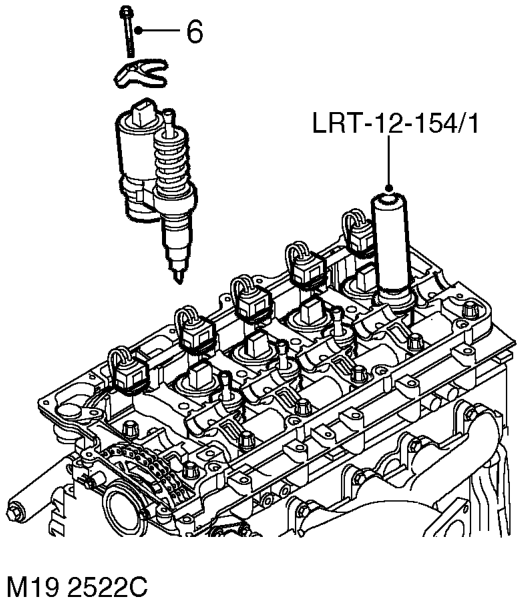

  2. Remove 5 Torx bolts securing injectors to cylinder head.
  3. Using LRT-12-154/1, remove injectors from cylinder head. Collect retainers.
Injectors – Using LRT-12-154/1, remove injectors from cylinder head. Collect retainers.

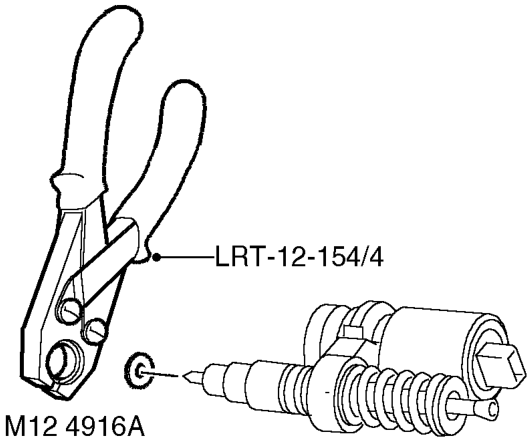

  1. Using LRT-12-154/4, remove sealing washers from injectors. Discard sealing washers.
  2. Remove and discard 'O' rings from injectors.
  3. Rotate engine manually until each cylinder being worked on is at TDC, and remove excess fuel from piston bowl using a syringe.
