Sensor - mass air flow (MAF)

Sensor - mass air flow (MAF)

$% 19.22.25

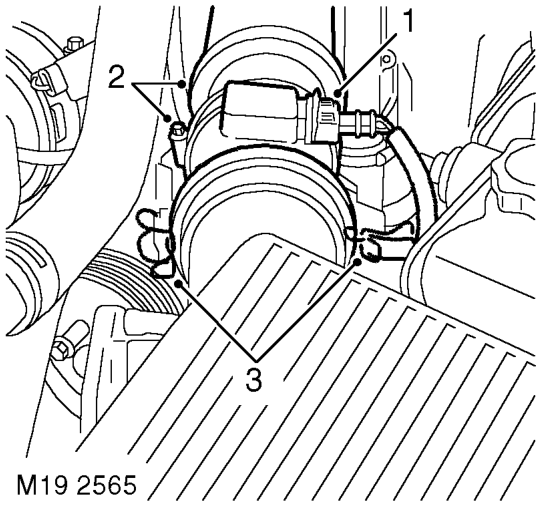

Remove

1. Disconnect multiplug from MAF sensor.
2. Loosen clip and release air intake hose from MAF sensor.
3. Release 2 clips and remove sensor from air cleaner.

Refit

1. Position sensor to air cleaner and secure clips.
2. Position air intake hose and tighten clip.
3. Connect multiplug to MAF sensor.

Sensor - combined MAP and IAT

$% 19.22.26

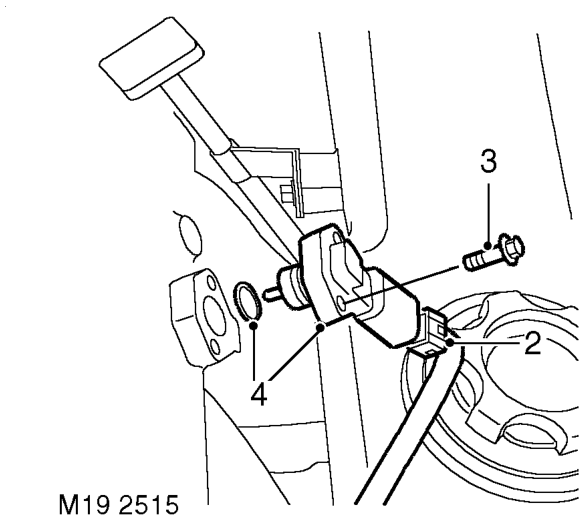

Remove

1. Remove 3 bolts and remove engine acoustic cover.

2. Disconnect multiplug from combined MAP and IAT sensor,
3. Remove 2 bolts securing sensor to inlet manifold.
4. Remove sensor and discard 'O' ring.

Refit

1. Clean sensor and inlet manifold mating face.
2. Fit new 'O' ring and position sensor to manifold.
3. Fit bolts securing MAP and IAT sensor and tighten to 9 Nm (7 lbf.ft).
4. Fit engine acoustic cover and secure with fixings.
