Land Rover Discovery II (UK)13 · Engine management system - Td5
13 · Engine

Sensor - fuel temperature

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Sensor - fuel temperature
Engine management system - Td5Sensor - fuel temperature

Sensor - fuel temperature

Sensor - fuel temperature

$% 19.22.08

Remove

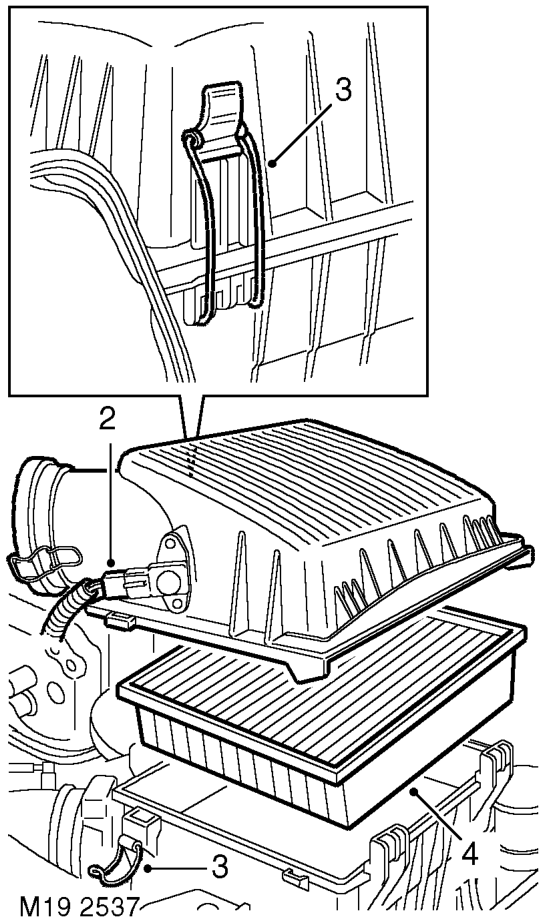

  1. Disconnect multiplug from AAP sensor.
  2. Release 2 clips and remove cover from air filter.
  3. Remove air filter element.

Refit

Refit

  1. Clean air filter body and cover.
  2. Fit new air filter element.
  3. Position air cleaner cover and secure clips.
  4. Position MAF sensor and secure clips.
  5. Connect multiplug to AAP sensor.
  6. Remove 3 bolts and remove engine acoustic cover.
  7. Release fixings and remove battery cover.
  8. Disconnect battery earth lead.

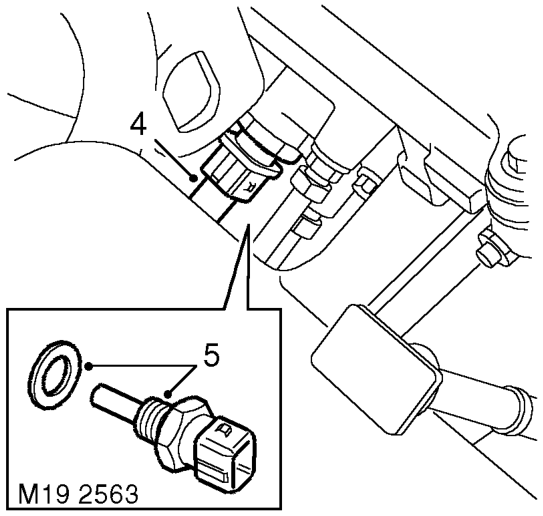

Sensor - fuel temperature – Disconnect battery earth lead.
  1. Disconnect multiplug from fuel temperature sensor.
  2. Thoroughly clean area around fuel temperature sensor before removal.
  3. Remove fuel temperature sensor and discard sealing washer.
  4. Clean fuel temperature sensor mating faces.
  5. Fit new sealing washer and tighten fuel temperature sensor to 13 Nm (10 lbf.ft) .
  6. Connect multiplug to fuel temperature sensor.
  7. Connect battery earth lead.
  8. Fit battery cover and secure fixings.
  9. Fit engine acoustic cover, and secure with fixings.
