Land Rover Discovery II (UK)13 · Engine management system - Td5
13 · Engine

Sensor - ambient air pressure (AAP)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Sensor - ambient air pressure (AAP)
Engine management system - Td5Sensor - ambient air pressure (AAP)

Sensor - ambient air pressure (AAP)

$% 19.22.27

Refit

Remove

Sensor - ambient air pressure (aap) – $% 19.22.27

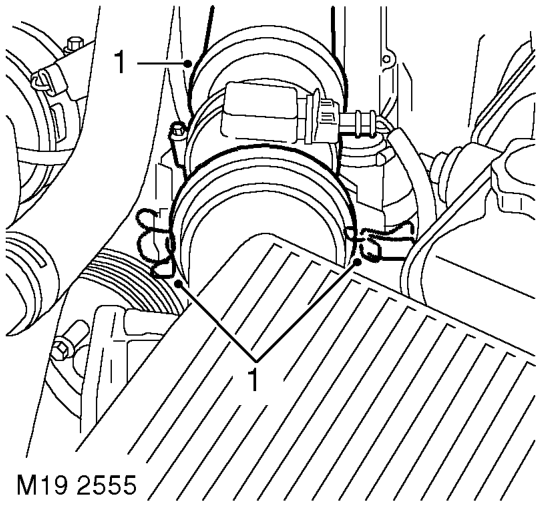

  1. Release 2 clips and disconnect MAF sensor from air cleaner cover.
Sensor - ambient air pressure (aap) – Release 2 clips and disconnect MAF sensor from air cleaner cover.

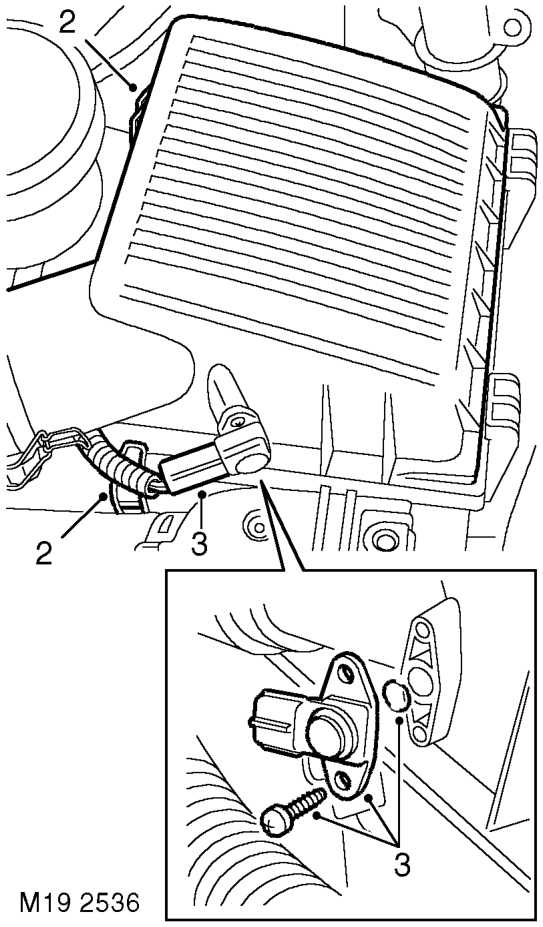

  1. Release 2 clips and release cover from air cleaner.
  2. Disconnect multiplug from AAP sensor, remove 2 screws, remove sensor and discard 'O' ring.
  3. Clean AAP sensor and air cleaner cover.
  4. Fit new 'O' ring, fit sensor and tighten screws.
  5. Position air cleaner cover and secure clips.
  6. Connect multiplug to AAP sensor.
  7. Position MAF sensor and secure clips.
