Engine - Td5Rocker shaft assembly · page 1 of 2

Rocker shaft assembly

$% 12.29.29

Remove

  1. Remove cooling fan. COOLING SYSTEM - Td5, REPAIRS, Fan - viscous.
  2. Remove camshaft cover gasket. ENGINE - Td5, REPAIRS, Gasket - cover - camshaft.
Rocker shaft assembly – Remove camshaft cover gasket.  ENGINE - Td5, REPAIRS, Gasket - cover - camshaft.

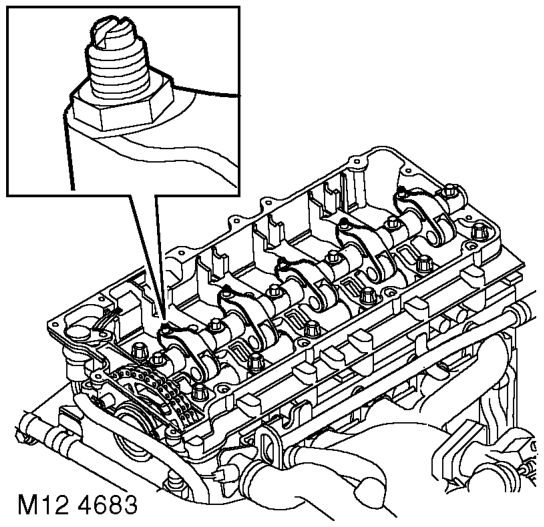

  1. Loosen lock nuts and fully retract rocker adjusting screws to prevent damage on reassembly.
Rocker shaft assembly – Loosen lock nuts and fully retract rocker adjusting screws to prevent damage on reassembly

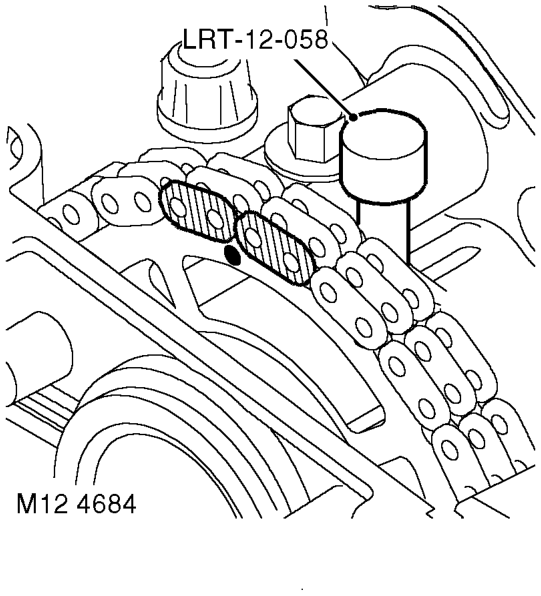

  1. Rotate engine clockwise, until camshaft sprocket and timing chain marks are aligned and fit tool LRT-12-058 through camshaft carrier to lock camshaft.
Rocker shaft assembly – Rotate engine clockwise, until camshaft sprocket and timing chain marks are aligned and fi

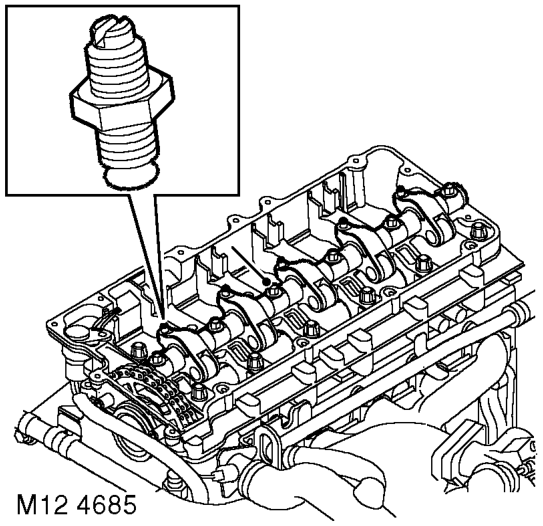

  1. Progressively loosen then remove and discard 6 bolts securing rocker shaft assembly.
  2. Remove and discard lock nuts and rocker adjusting screws.
