Mounting - engine - rear - LH

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Mounting - engine - rear - LH
Engine - Td5Mounting - engine - rear - LH

Mounting - engine - rear - LH

$% 12.45.07

Remove

  1. Raise vehicle on ramp.
  2. Position jack to support gearbox.

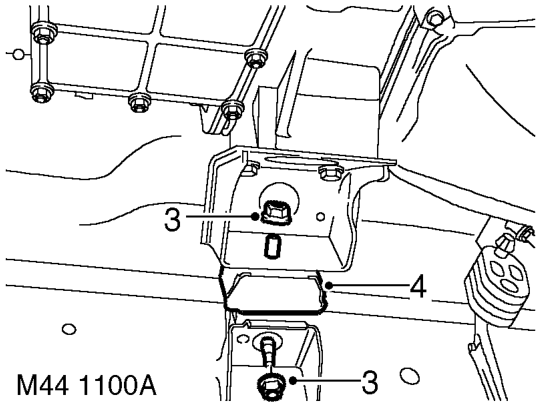

Mounting - engine - rear - lh – Position jack to support gearbox.
  1. Remove 2 nuts and remove mounting.
  2. Remove heat shield from mounting.

Refit

  1. Clean mounting and mating faces.
  2. Position heat shield to mounting.
  3. Position engine rear LH mounting and tighten nuts to 48 Nm (35 lbf.ft).
  4. Lower support jack.
  5. Lower vehicle.

Mounting - engine - rear - RH

$% 12.45.09

Remove

  1. Raise vehicle on ramp.

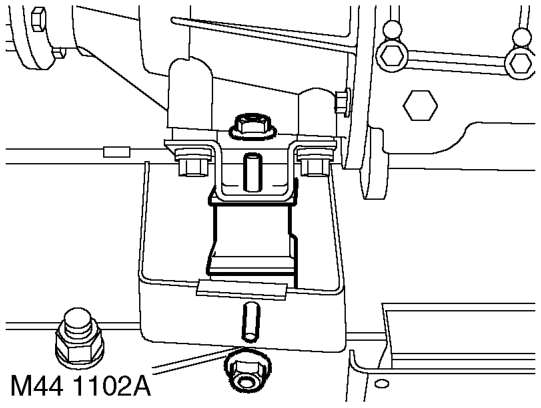

Mounting - engine - rear - rh – Raise vehicle on ramp.
  1. Position jack to support gearbox.
  2. Remove 2 nuts and remove mounting.

Refit

  1. Clean mounting and mating faces.
  2. Position engine rear RH mounting and tighten nuts to 48 Nm (35 lbf.ft).
  3. Lower support jack.
  4. Lower vehicle.
