Gasket - cover - camshaft

Gasket - cover - camshaft

$% 12.29.40

Remove

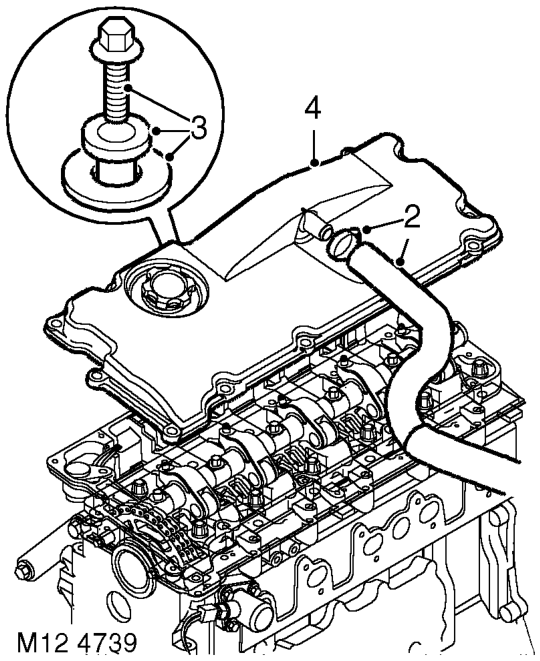

1. Remove 3 bolts and remove engine acoustic cover.

2. Release clip and disconnect breather hose from camshaft cover.
3. Remove 13 bolts securing camshaft cover.
4. Collect sealing washers and spacers.
5. Remove camshaft cover and gasket.

Refit

1. Clean camshaft cover and mating face.
2. Renew sealing washers and spacers as necessary.

A

B

A M12 7538

3. Not EU3 model:- Apply two 3 mm diameter beads of sealant, STC 5433, to areas 'A' shown on illustration.

Excessive use of sealant could result in blockage of oil drain hole, arrowed 'B' on illustration.

4. Fit new gasket, fit camshaft cover to camshaft carrier and tighten – camshaft cover bolts to 9 Nm (7 lbf.ft).
5. Position breather hose to camshaft cover and secure with clip.
6. Fit engine acoustic cover and secure with fixings.
