Land Rover Discovery II (UK)09 · Engine - Td5
09 · Engine

Gasket - cylinder head

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Gasket - cylinder head
Engine - Td5Gasket - cylinder head · page 1 of 5

Gasket - cylinder head

$% 12.29.02

Remove

Note: The following procedures cover engines fitted with or without an EGR cooler. The EGR cooler is bolted to the front of the cylinder head.

  1. Remove bonnet. EXTERIOR FITTINGS, REPAIRS, Bonnet.
  2. Release turnbuckles and remove battery cover.
  3. Disconnect battery earth lead.
  4. Drain cooling system. COOLING SYSTEM - Td5, ADJUSTMENTS, Drain and refill.
  5. Remove camshaft cover gasket. ENGINE - Td5, REPAIRS, Gasket - cover - camshaft.
  6. Remove cooling fan coupling. COOLING SYSTEM - Td5, REPAIRS, Fan - viscous.
Gasket - cylinder head – Remove cooling fan coupling.  COOLING SYSTEM - Td5, REPAIRS, Fan - viscous.

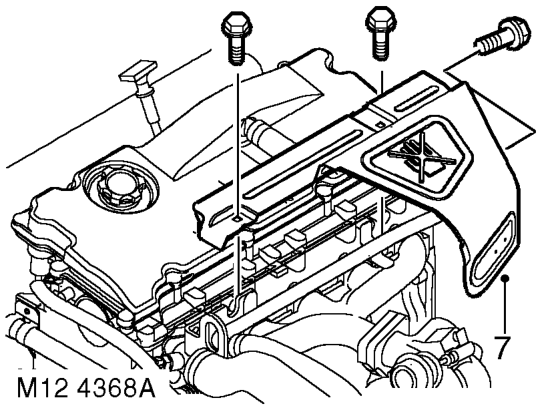

  1. Remove 3 bolts and remove exhaust manifold heat shield.
Gasket - cylinder head – Remove 3 bolts and remove exhaust manifold heat shield.

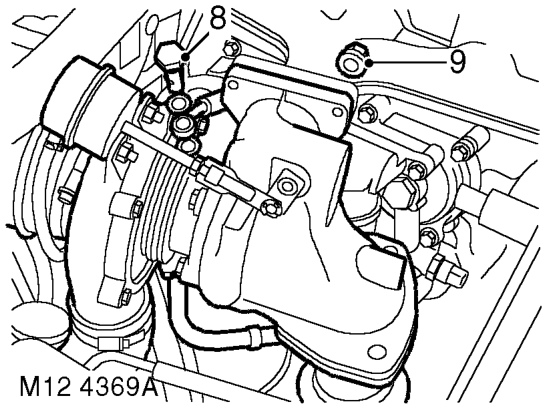

  1. Remove turbocharger oil feed banjo bolt and discard sealing washers.
  2. Remove 3 nuts, release turbocharger from exhaust manifold, discard gasket and tie turbocharger aside.
Gasket - cylinder head – Remove 3 nuts, release turbocharger from exhaust manifold, discard gasket and tie turbocha

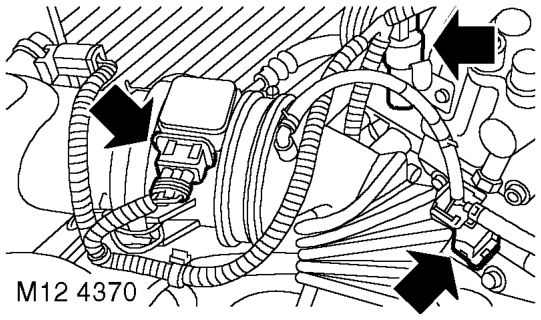

  1. Disconnect multiplugs from compressor, MAF sensor, turbocharger wastegate modulator, and AAP & IAT sensor.
Gasket - cylinder head – Disconnect multiplugs from compressor, MAF sensor, turbocharger wastegate modulator, and A

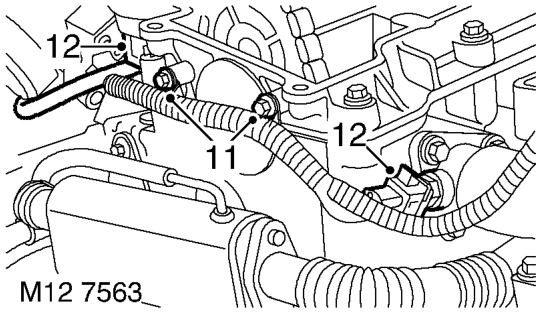

  1. Remove 2 bolts securing engine harness to camshaft carrier.
  2. Disconnect multiplug from EUI's and coolant temperature sensor.
