Engine - Td5Gasket - sump · page 1 of 2

Gasket - sump

$% 12.60.38

Remove

  1. Remove battery cover.
  2. Disconnect battery earth lead.
  3. Remove exhaust front pipe. MANIFOLDS AND EXHAUST SYSTEMS - Td5, REPAIRS, Pipe - front.
  4. Drain engine oil.

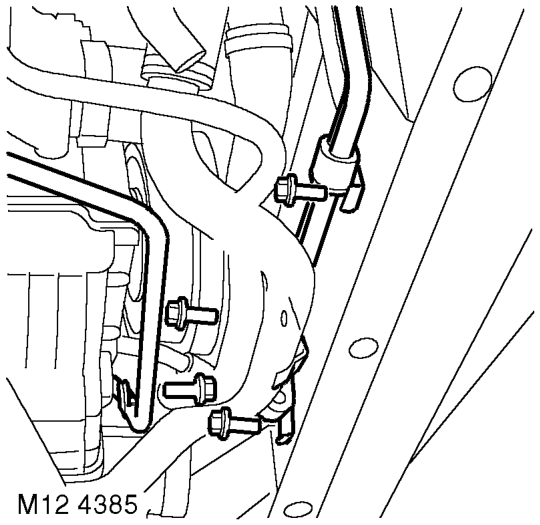

Gasket - sump – Drain engine oil.
  1. Using sequence shown and noting their
  2. Remove 2 bolts securing Active Cornering Enhancement (ACE) pipes to front cross
  3. Manoeuvre sump from beneath engine,

member.

  1. Remove bolt securing coolant pipe to front cross member.
  2. Remove bolt securing automatic gearbox oil cooler pipe clip.

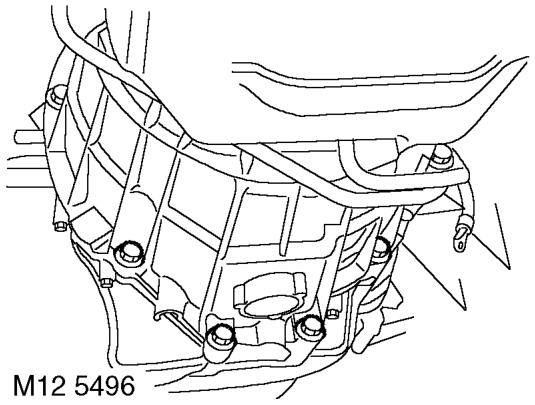

Gasket - sump – Remove bolt securing automatic gearbox oil cooler pipe clip.

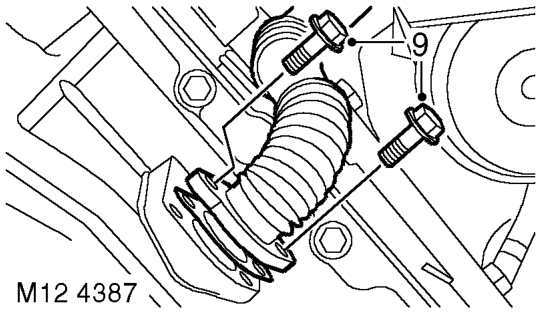

  1. Remove 4 bolts securing sump to gearbox bell housing.
Gasket - sump – Remove 4 bolts securing sump to gearbox bell housing.
  1. Remove 2 bolts securing centrifuge drain pipe to sump and discard gasket.

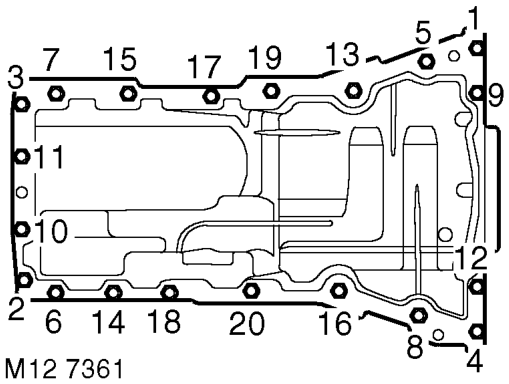

Gasket - sump – Remove 2 bolts securing centrifuge drain pipe to sump and discard gasket.

different lengths, remove 20 bolts securing sump to engine.

remove sump and discard gasket.
