Mounting - front - LH

Mounting - front - LH

$% 12.45.01

Remove

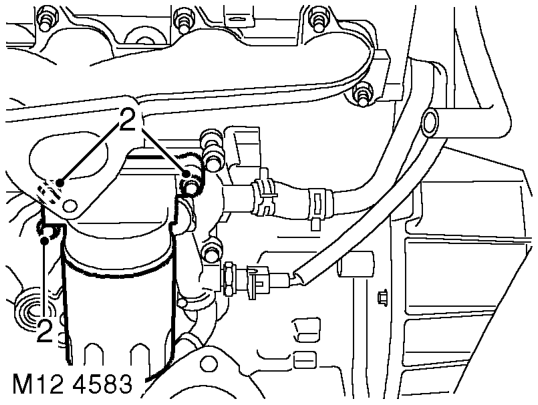

1. Remove centrifuge assembly. ENGINE - Td5, REPAIRS, Gasket - centrifuge oil drain pipe.

2. Remove 3 bolts, remove oil filter adaptor housing and discard gasket.

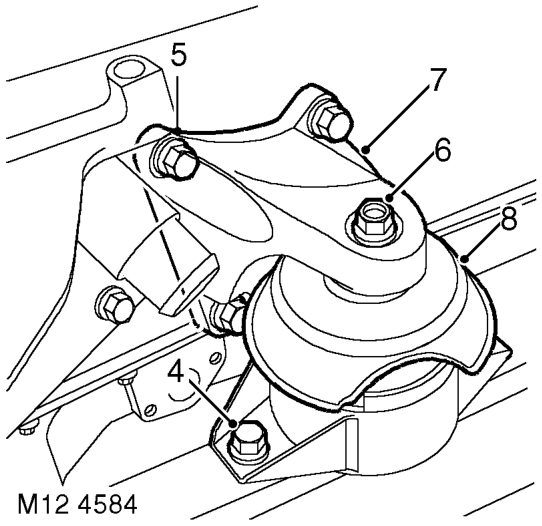

3. Fit suitable lifting chains to support engine.

4. With assistance remove 2 bolts securing engine mounting to chassis.
5. Remove 4 bolts securing engine mounting bracket to cylinder block.
6. Remove nut securing mounting to mounting bracket.
7. Remove mounting and mounting bracket.
8. Remove mounting shield.

Refit

1. Fit shield to mounting.
2. Fit mounting and mounting bracket.
3. Fit mounting bracket to cylinder block and tighten – bolts securing front LH engine mounting bracket to cylinder block to 48 Nm (35 lbf.ft).
4. With assistance, fit mounting to chassis and tighten – bolts securing front LH engine mounting to chassis to 85 Nm (63 lbf.ft).
5. Fit mounting to mounting bracket and tighten – nut securing front LH mounting to mounting bracket to 85 Nm (63 lbf.ft).
6. Remove engine support chains.
7. Clean oil filter adaptor housing and mating face.
8. Fit oil filter adaptor housing to oil cooler housing and tighten bolts to 25 Nm (18 lbf.ft).
9. Fit centrifuge assembly. ENGINE - Td5, REPAIRS, Gasket - centrifuge oil drain pipe.
