Flywheel Plate - drive - automatic

Flywheel Plate - drive - automatic

$% 12.53.07 $% 12.53.13

Remove Remove

1. Remove clutch assembly. CLUTCH - Td5, REPAIRS, Clutch assembly.
2. Remove and discard 8 bolts securing flywheel to crankshaft and remove flywheel.

Refit

1. Clean flywheel and mating face.
2. Position flywheel to crankshaft, fit new bolts and working in a diagonal sequence tighten to 40 Nm (30 lbf.ft), then a further 90°.

CAUTION: Do not carry out stages 1 and 2 in one operation.

3. Fit clutch assembly. CLUTCH - Td5, REPAIRS, Clutch assembly.

Refit

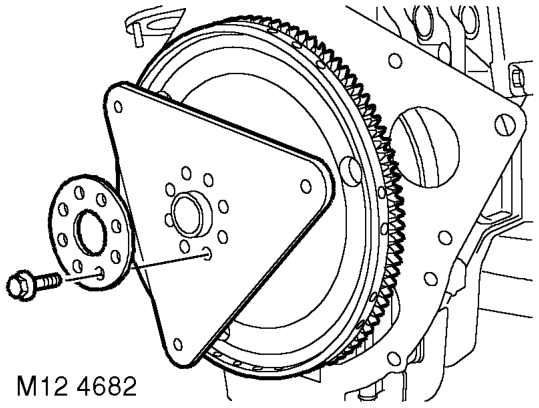

1. Remove gearbox. AUTOMATIC GEARBOX - ZF4HP22 - 24, REPAIRS, Gearbox - convertor and transfer gearbox - Diesel.

2. Remove and discard 8 bolts and remove converter drive plate, spacer and starter ring gear.
1. Clean drive plate, spacer and starter ring gear.
2. Fit starter ring gear, spacer and drive plate to crankshaft, fit new bolts and working in a diagonal sequence tighten to 40 Nm (30 lbf.ft), then a further 90°.

CAUTION: Do not carry out stages 1 and 2 in one operation.

3. Refit gearbox. AUTOMATIC GEARBOX - ZF4HP22 - 24, REPAIRS, Gearbox - convertor and transfer gearbox - Diesel.
