Filter - oil

Filter - oil

$% 12.60.04

Remove

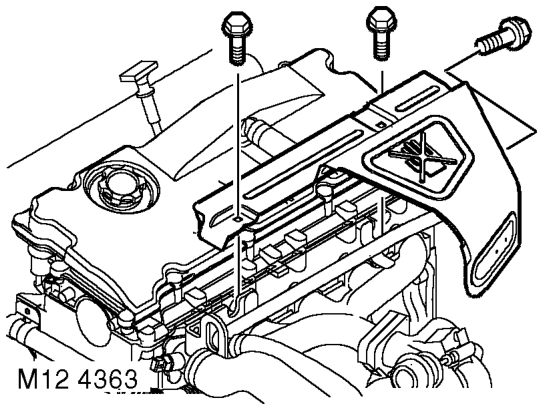

1. Remove 3 bolts and remove engine acoustic cover.

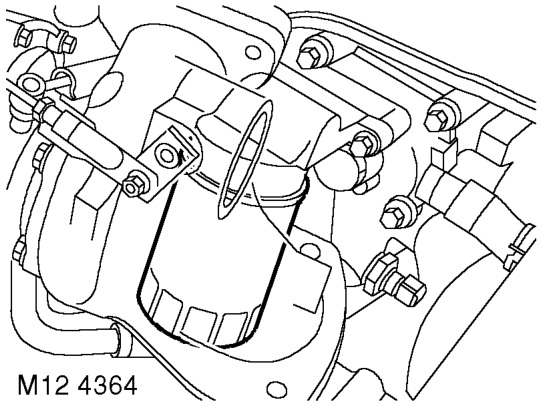

2. Remove 3 bolts and remove exhaust manifold heat shield.

3. Clean area around filter head and place a container beneath engine.
4. Using a strap wrench, unscrew and discard filter.

Refit

1. Clean mating face of filter head.
2. Lubricate sealing ring of new filter with clean engine oil.
3. Fit filter and tighten by hand until it seats then tighten a further three-quarters of a turn.
4. Start and run engine to check for leaks.
5. Stop engine, wait a few minutes, then check oil level.
6. Top up engine oil. MAINTENANCE, PROCEDURES, Engine oil - diesel engine.
7. Position exhaust manifold heatshield and tighten M6 bolts to 9 Nm (7 lbf.ft) and M8 bolts to 25 Nm (18 lbf.ft).
8. Fit engine acoustic cover and secure with fixings.
