Cooler - engine oil

Refit

1. Clean oil pressure switch threads.
2. Fit oil pressure switch and tighten to 15 Nm (11 lbf.ft).
3. Connect multiplug to oil pressure switch.
4. Position exhaust manifold heatshield and tighten M6 bolts to 9 Nm (7 lbf.ft) and M8 bolts to 25 Nm (18 lbf.ft).
5. Fit and secure engine acoustic cover.
6. Top up engine oil. MAINTENANCE, PROCEDURES, Engine oil - diesel engine.

Cooler - engine oil

$% 12.60.68

Remove

1. Drain cooling system. COOLING SYSTEM - Td5, ADJUSTMENTS, Drain and refill.

2. Remove centrifuge assembly. ENGINE - Td5, REPAIRS, Gasket - centrifuge oil drain pipe.

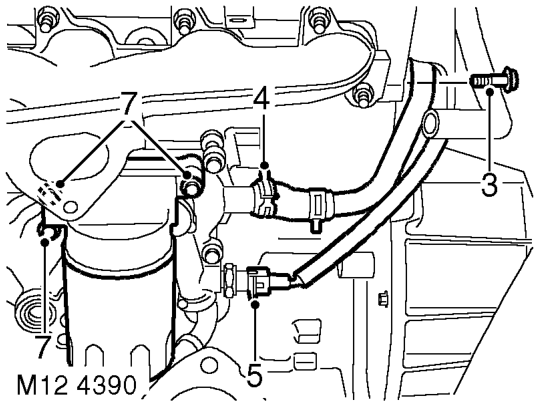

3. Remove clutch housing bolt and release coolant pipe from rear of engine.
4. Release clip and coolant hose from oil cooler.
5. Disconnect multiplug from oil pressure switch.
6. Remove full-flow oil filter element using a suitable strap wrench.
7. Remove 3 bolts, remove oil filter adaptor housing and discard gasket.

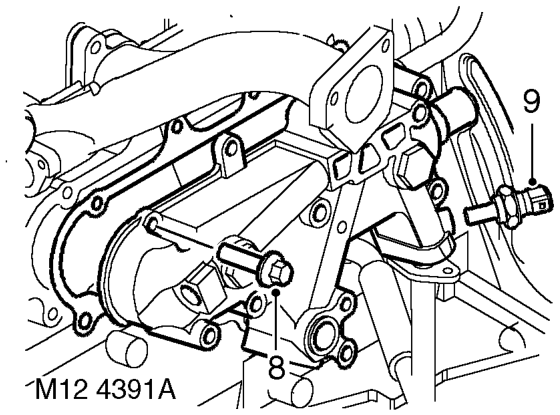

8. Remove 7 bolts, remove oil cooler and discard gasket.
9. Remove oil pressure switch.
