Cooler - engine oil (page 3 of 3)

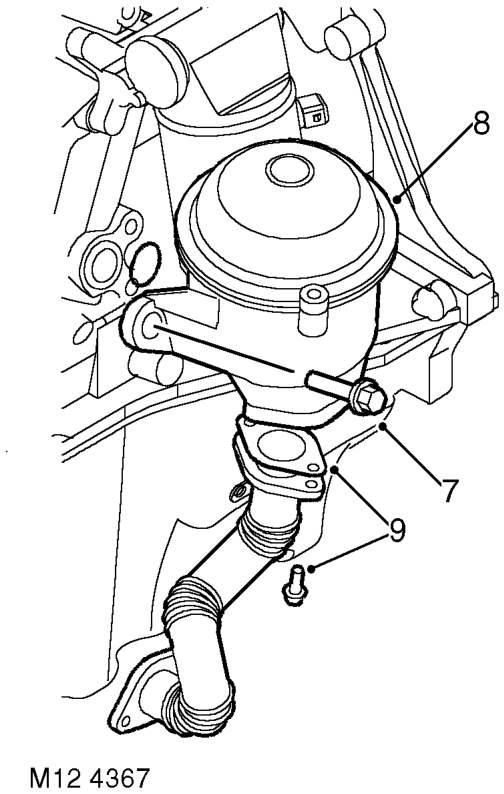

7. Remove 3 bolts securing centrifuge to engine oil cooler.
8. Remove centrifuge and discard 'O' ring.
9. Remove 2 bolts, remove drain pipe from centrifuge and discard gasket.

Refit

1. Clean mating faces of centrifuge, oil cooler and sump.
2. Position new gasket and fit oil drain pipe to centrifuge, tighten bolts to 10 Nm (7 lbf.ft).

CAUTION: Gasket must be fitted dry.

3. Position new 'O' ring to oil cooler.
4. Position centrifuge to oil cooler housing and tighten bolts to 25 Nm (18 lbf.ft).
5. Using a new gasket, align the centrifuge oil drain pipe to sump and tighten bolts to 10 Nm (7 lbf.ft).

CAUTION: Gasket must be fitted dry.

6. Models with air conditioning: Position A/C compressor and tighten bolts to 25 Nm (18 lbf.ft).
7. Fit turbocharger. ENGINE MANAGEMENT SYSTEM - Td5, REPAIRS, Turbocharger.
8. Models with air conditioning: Fit auxiliary drive belt. CHARGING AND STARTING, REPAIRS, Belt - auxiliary drive.
9. Fit underbelly panel and secure with fixings.
10. Remove stand(s) and lower vehicle.
