Cooler - engine oil (page 2 of 3)

Refit

1. Clean oil cooler and mating faces. Gasket - centrifuge oil drain pipe
2. Fit oil pressure switch and tighten to 9 Nm (7 lbf.ft).

$% 12.60.90

3. Position new gasket and fit oil cooler housing, tighten bolts to 25 Nm (18 lbf.ft).

Remove

4. Position and fit oil filter adaptor housing, tighten bolts to 25 Nm (18 lbf. ft).
5. Fit oil filter, tighten hand tight then a further half turn.
6. Position coolant hose to oil cooler and secure clip.
7. Position coolant pipe bolt and tighten to 50 Nm (37 lbf.ft) .
8. Connect multiplug to oil pressure switch.
9. Fit centrifuge assembly. ENGINE - Td5, REPAIRS, Gasket - centrifuge oil drain pipe.
10. Refill cooling system. COOLING SYSTEM - Td5, ADJUSTMENTS, Drain and refill.
11. Top up engine oil. MAINTENANCE, PROCEDURES, Engine oil - diesel engine.
1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove fixings and remove underbelly panel.

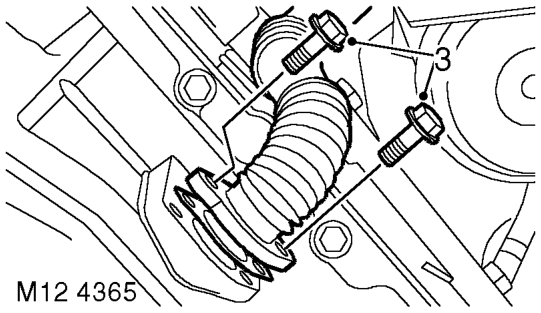

3. Remove 2 bolts securing centrifuge drain to engine sump and discard gasket. (Some models are fitted with studs and nuts, others with bolts).
4. Remove turbocharger. ENGINE MANAGEMENT SYSTEM - Td5, REPAIRS, Turbocharger.
5. Models with air conditioning: Remove auxiliary drive belt. CHARGING AND STARTING, REPAIRS, Belt - auxiliary drive.

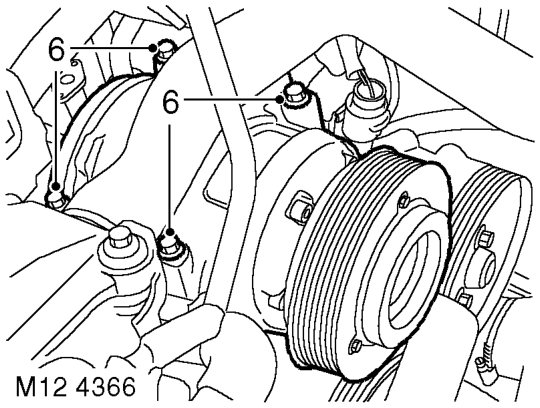

6. Models with air conditioning: Remove 4 bolts securing compressor and move to one side.
