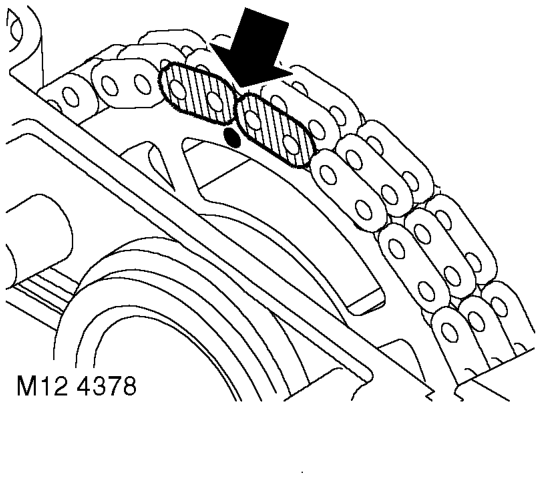

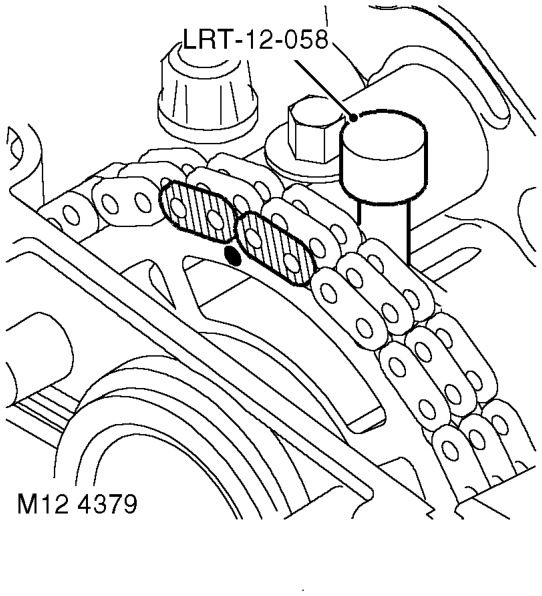

29. Rotate engine clockwise to align mark on camshaft sprocket between coloured links on timing chain.

30. Position tool LRT-12-058 through camshaft carrier to lock camshaft.

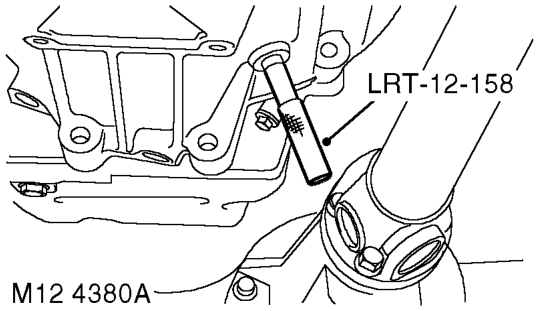

31. Position tool LRT-12-158 through gearbox bell housing to lock crankshaft.

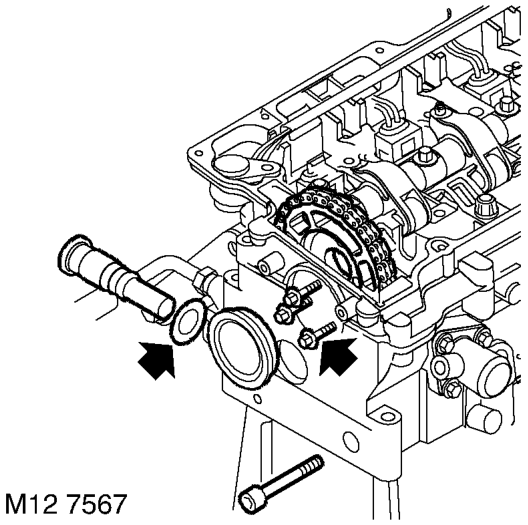

32. Remove timing chain tensioner and discard sealing washer.
33. Remove timing chain fixed guide Allen screw from front of cylinder head.
34. Lever out camshaft sprocket blanking plug and 'O'-ring seal from front of cylinder head and discard.
35. Remove 3 bolts and release timing sprocket from camshaft. Discard bolts.

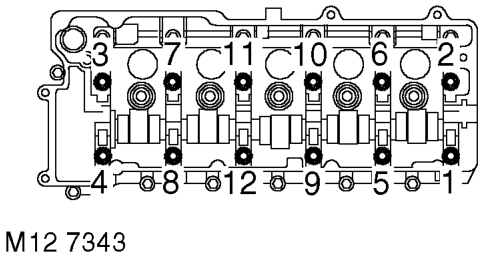

36. Using sequence shown, progressively loosen then remove and discard 12 cylinder head bolts together with their captive washers.
