Pump - oil (page 2 of 2)

Make

Land Rover

Model

Discovery II (UK)

Section

Overhaul

Engine - Td5Pump - oil · page 2 of 2

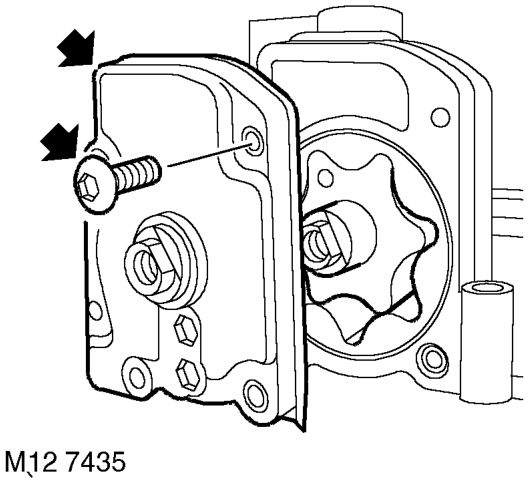

2. Remove and discard 5 screws securing cover to oil pump, remove cover.

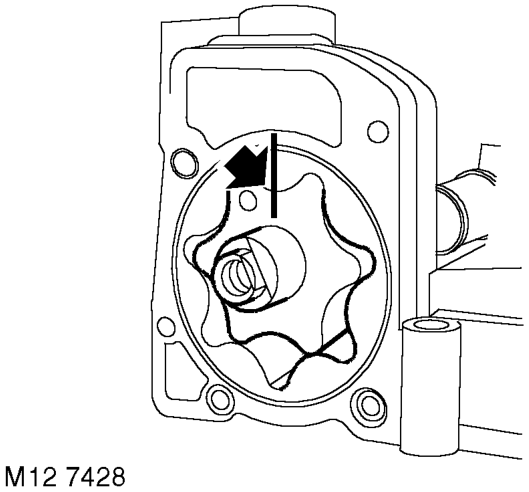

3. Using a felt tipped pen, make suitable alignment marks between inner and outer rotors and oil pump body.
4. Remove inner and outer rotors.
5. Check rotors and pump body for signs of scoring and wear.

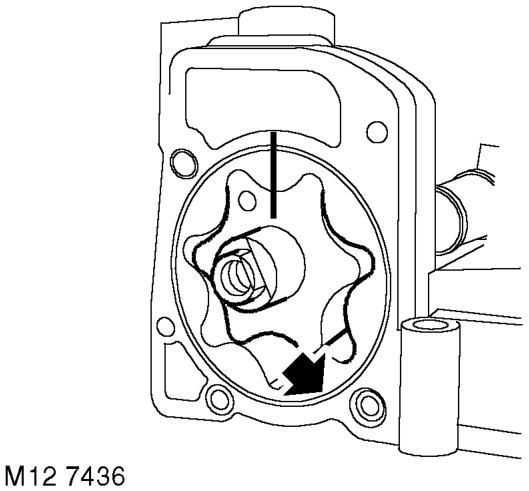

6. Fit rotors ensuring that marks are aligned and identification mark on inner rotor is facing outwards.

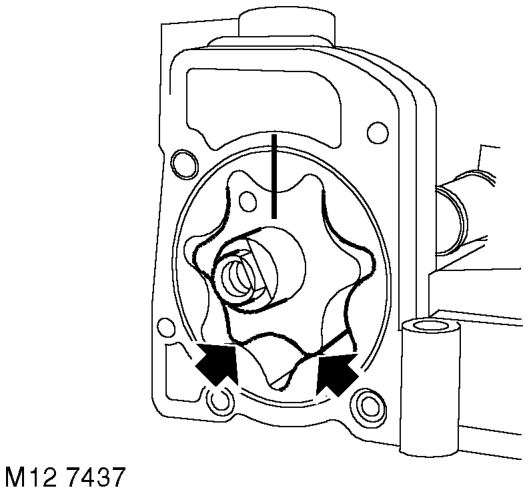

7. Using feeler gauges, check pump outer rotor to body clearance: l Outer rotor to body clearance = 0.295 to 0.375 mm (0.012 to 0.015 in)

8. Using feeler gauges, check clearance of inner to outer rotor in 2 positions; both clearances must be within limit given: l Inner to outer rotor clearance = 0.13 mm (0.05 in)

09 Engine
