Harness - injectors - diesel (page 7 of 12)

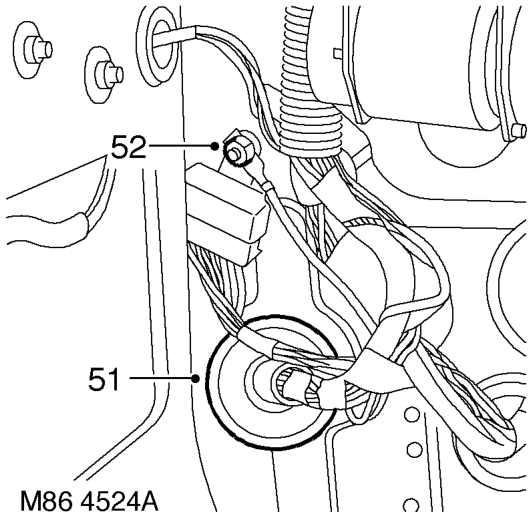

51. Remove grommet and feed harness from rear bumper to upper 'E' post.
52. Remove nut securing earth headers to RH 'E' post.
53. Feed harness to air conditioning ducting.

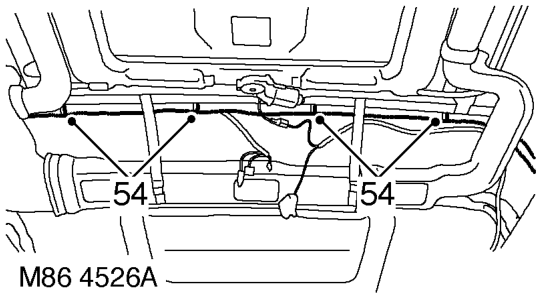

54. Remove 4 cable ties securing harness to centre of roof.
55. With assistance, remove harness from air conditioning ducting and remove from vehicle.

Refit

1. With assistance, position harness to air conditioning ducting and secure with cable ties.
2. Secure harness to sunroof harness with cable clips.
3. Connect multiplug to RF receiver.
4. Feed harness to LH and RH upper 'E' posts.
5. Feed harness through 'E' post to tail lamp and rear bumper and secure with grommet.
6. Connect multiplug to fuel flap solenoid and alarm sounder.
7. Position alarm sounder to rear quarter and secure with nut to 9 Nm (7 lbf.ft).
8. Position both RH earth header to 'E' post and tighten nut to 10 Nm (7 lbf.ft).
9. Feed tail door harness through 'E' post and secure with grommet.
10. Position harness sleeve to outer edge of door and pull harness through door.
11. Secure harness to tail door with clips.
12. Connect washer tube to rear of wiper arm.
13. Remove tape from draw string and secure to CHMSL harness.
14. Draw harness through tail door and connect Lucars to CHMSL.
15. Fit CHMSL cover and secure with screws.
16. Connect multiplug to door lock switch.
17. Connect Lucars to HRW.
18. Connect multiplug to rear wiper motor.
19. Connect multiplug to door latch.
20. Fit plastic sheet to tail door, ensuring it aligns with witness marks.
21. Fit tail door trim casing. DOORS, REPAIRS, Trim casing - tail door.
22. Connect Lucar to radio aerial RH amplifier.
23. Secure harness to RH side of body with clips and retainers.
24. Position both LH earth header to 'E' post and tighten nut to 10 Nm (7 lbf.ft).
25. Connect multiplugs to both tail/flasher lamps and secure harness to bumper with clips.
26. Fit both rear tail lamps. LIGHTING, REPAIRS, Lamp - tail.
27. Secure harness to rear LH side of body with 6 cable clips.
28. Connect 2 Lucars to rear air conditioning unit.
29. Fit both luggage compartment trim casings. INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - side - loadspace.
30. Feed harness into position for rear interior light.
31. Connect Lucar to radio aerial LH amplifier.
32. Secure harness to body with cable ties clips and retainers.
33. Secure air conditioning ducting to body with rivets.
34. Feed harness to LH lower 'A' post.
