Damper - steering (page 2 of 2)

Refit

10. Fit and tighten new self locking nut securing
11. Fit drivers airbag.

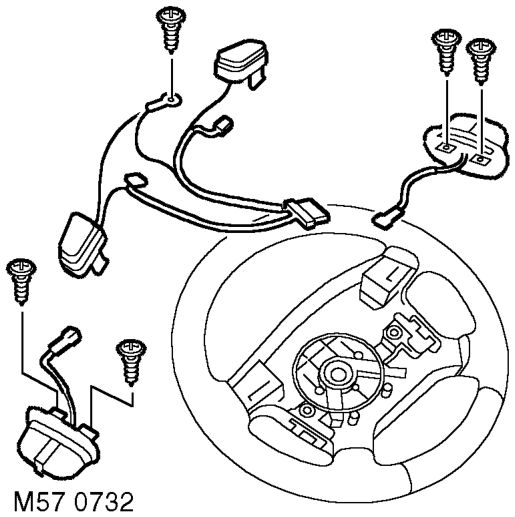

9. Release 2 clips securing each horn button to steering wheel.
10. Remove screw securing horn earth lead to steering wheel.
11. Disconnect radio and cruise control multiplugs.
12. Remove 2 screws securing radio switches to steering wheel.
13. Remove radio switches from steering wheel.
14. Remove 2 screws securing cruise control switches to steering wheel.
15. Remove cruise control switches from steering wheel.
16. Remove horns from steering wheel.
1. Fit horn switches to steering wheel and secure with clips.
2. Fit and tighten screw securing horn earth lead to steering wheel.
3. Fit cruise control switches to steering wheel and secure with screws.
4. Fit radio switches to steering wheel and secure with screws.
5. Connect radio and cruise control multiplugs.
6. Remove tape from rotary coupler.
7. Ensure road wheels are in straight ahead position and indicator cancelling cam are aligned horizontally.
8. Fit steering wheel to column.
9. Connect horn multiplug.

steering wheel to column to 43 Nm (32 lbf.ft).

RESTRAINT SYSTEMS, REPAIRS, Airbag module - drivers.
