Power steering box - V8 (page 2 of 3)

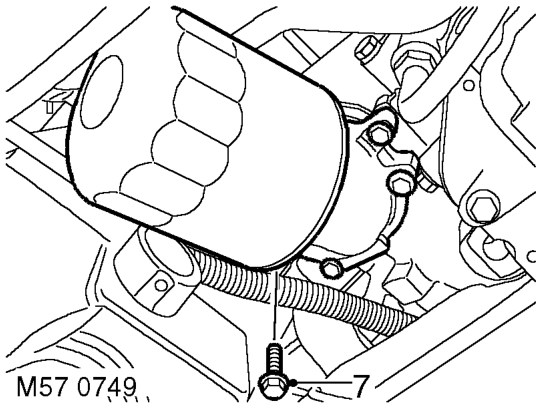

7. RH drive models:Remove 4 bolts securing oil filter housing, remove housing and discard 'O' ring.

CAUTION: Always fit plugs to open connections to prevent contamination.

10. Remove nut securing drag link to drop arm.

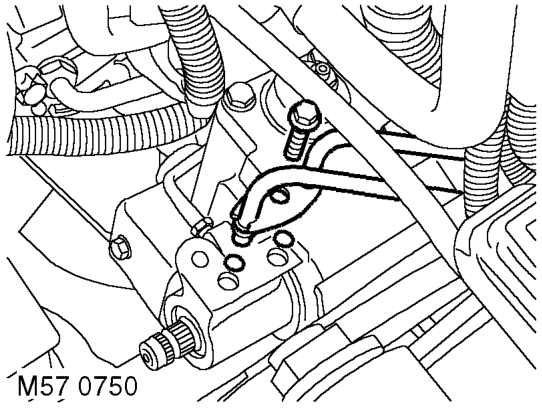

8. Remove bolt securing PAS pipe bracket to steering box, release pipes and discard 'O' rings.

CAUTION: Always fit plugs to open connections to prevent contamination.

11. RH drive models with ACE:

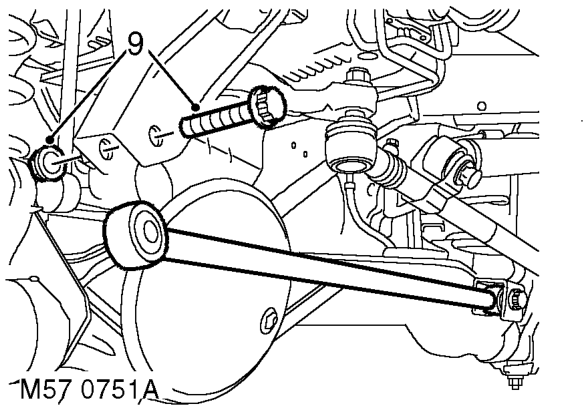

9. Remove securing nut and bolt and release Panhard rod.

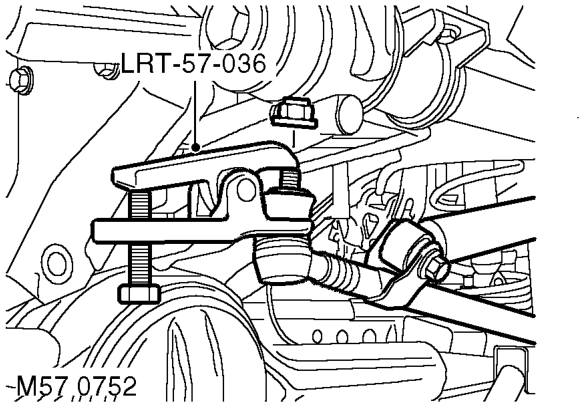

Using LRT-57-036, break taper joint and release drag link.

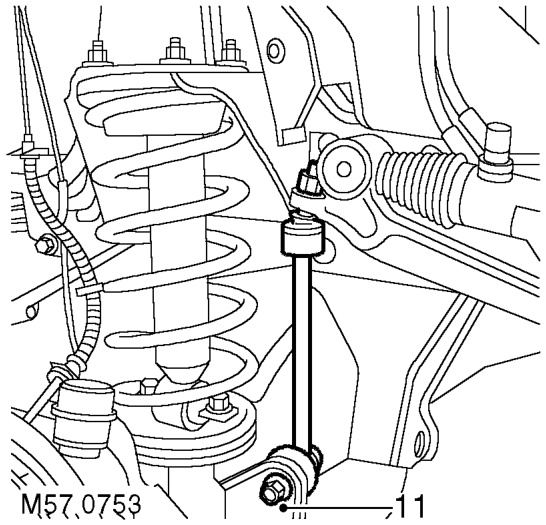

Remove nut securing anti-roll bar link lower ball joint and release joint.
