Land Rover Discovery II (UK)29 · Steering
29 · Steering & suspension

Pump - power steering - V8 (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
SteeringPump - power steering - V8 · page 2 of 2
Diagram

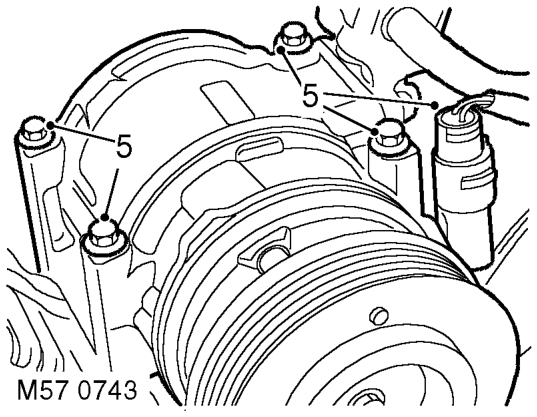

  1. Models with A/C: Disconnect A/C compressor multiplug. Remove 4 bolts securing A/C compressor, release compressor and position aside.
Models with A/C: Disconnect A/C compressor multiplug. Remove 4 bolts securing A/C compress

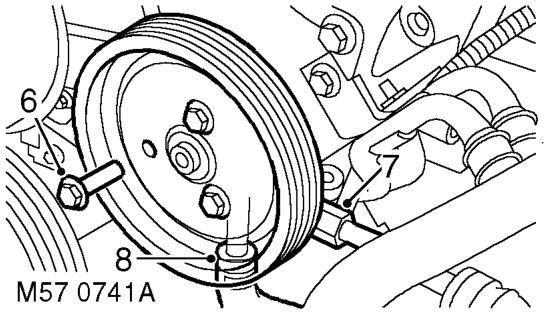

  1. Remove 3 bolts securing PAS pump pulley and remove pulley.
  2. Position tray to catch spillage, release PAS pump pressure pipe.
  3. Remove clip and release PAS pump inlet hose.

CAUTION: Always fit plugs to open connections to prevent contamination.

  1. Remove bolt securing oil cooling pipe bracket
  2. Remove two bolts securing PAS pump.

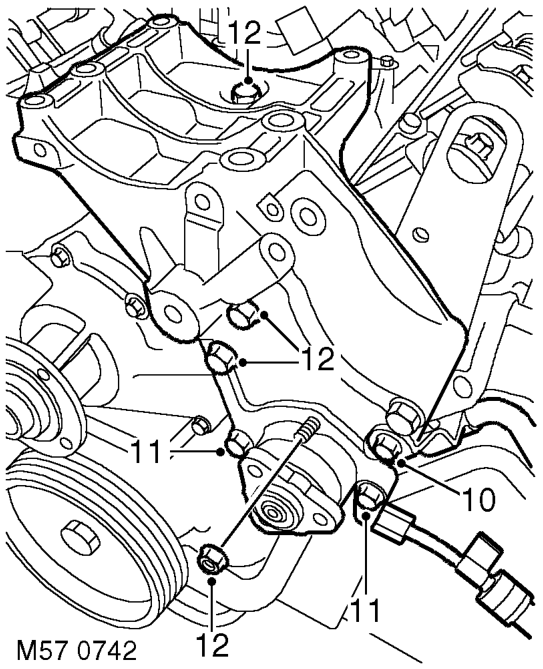

  3. Remove 4 bolts and one nut securing auxiliary
Remove 4 bolts and one nut securing auxiliary

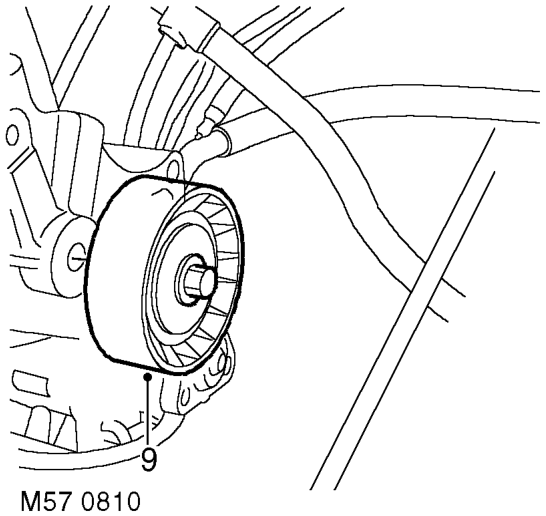

  1. Remove jockey pulley.
Remove jockey pulley.

and release bracket from housing.

housing. Pull housing forward and release PAS pump. Remove PAS pump.
