Transfer box - V8 (page 2 of 3)

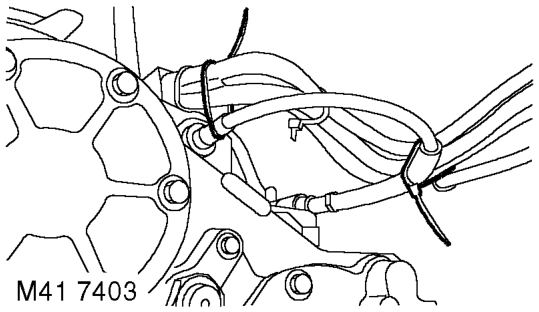

11. Remove 2 cable ties securing cable to fuel pipes.

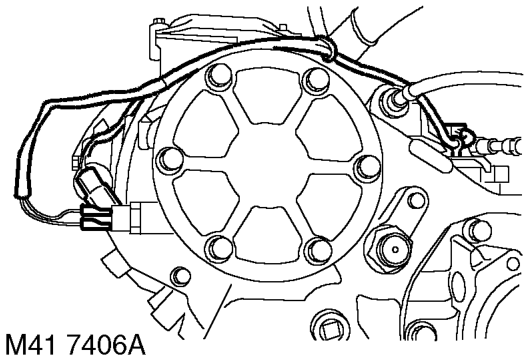

16. Remove 4 bolts from transfer box bottom plate,

17. Position gearbox support jack and secure

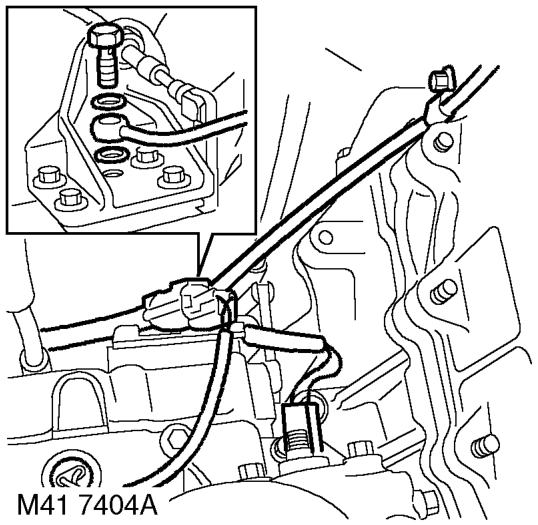

12. Disconnect 2 Lucars from oil temperature sensor and disconnect reverse lamp switch multiplug.

18. Remove 3 bolts securing transfer box to
19. Fit 3 guide studs
20. Remove 2 bolts and nut securing transfer box
13. Remove banjo bolt securing breather pipe and discard washers.

14. If fitted - Disconnect 2 Lucars from differential lock switch.

21. Position a jack to support gearbox and engine.

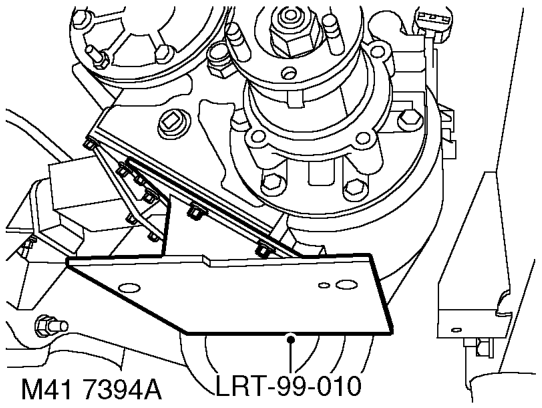

15. Release and disconnect transfer box neutral switch multiplug.

position support plate LRT-99-010 to transfer box and tighten bolts.

support plate to jack using 4 bolts.

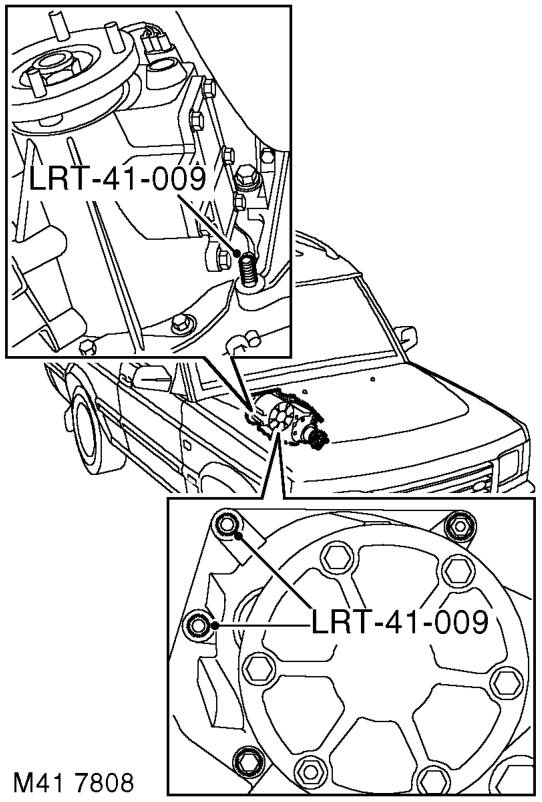

gearbox. LRT-41-009 through transfer box bolt holes to support it during removal.

to gearbox case. If securing stud is removed during this operation, it must be discarded and a new stud fitted.
