Land Rover Freelander Workshop Manual (1998-2000)06 · Engine - L Series
06 · Engine

Seal - camshaft - front (page 3 of 4)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Engine - L SeriesSeal - camshaft - front · page 3 of 4
Diagram

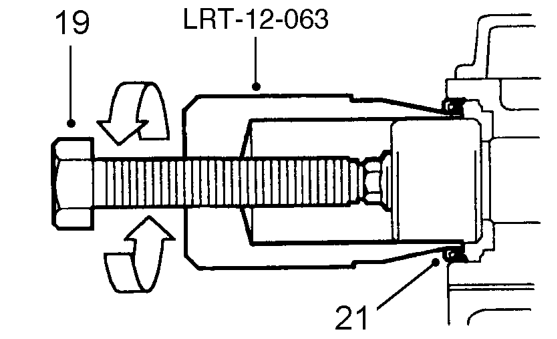

  1. Fit and tighten seal remover tool LRT-12-063 to camshaft seal.
  2. Tighten seal remover centre screw to remove camshaft seal.
  3. Remove seal remover LRT-12-063.
  4. Remove and discard seal from seal remover tool.
  5. Remove and discard camshaft gear retaining bolt.

Refit

  1. Clean seal recess and camshaft.

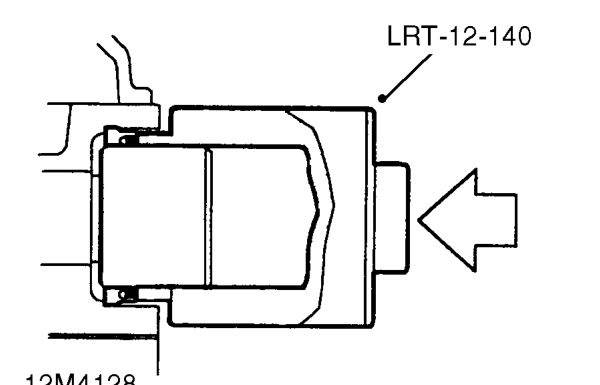

Clean seal recess and camshaft.
  1. Ensure seal fitting tool LRT-12-140 is clean.
  2. Fit camshaft oil seal using tool LRT-12- 140.

CAUTION: Oil seal must be fitted dry.

  1. Remove tool LRT-12-140.
  2. Clean camshaft gear and mating face.
  3. Fit camshaft gear to belt and position gear to camshaft.

CAUTION: Ensure timing marks on camshaft gear and rear cover are aligned.

  1. Apply clean engine oil to threads of new camshaft gear retaining bolt.
  2. Fit camshaft gear bolt but do not tighten at this stage.

CAUTION: Ensure camshaft does not rotate.
