RESTRAINT SYSTEMS
REPAIRS
75-25
6. Connect deployment tool fly lead LRT-86-003/
05 to airbag.
7. Connect deployment tool LRT-86-003 to
deployment tool fly lead LRT-86-003/05.
8. Connect deployment tool LRT-86-003 to
battery.
WARNING: Ensure all personnel are at least
15 metres (50 feet) away from the airbag
module.
9. Press deployment tool operating button to
deploy airbag module.
10. Disconnect deployment tool from battery.
WARNING: During deployment parts of the
airbag module become hot enough to burn
you. Wait 30 minutes after deployment
before touching the airbag module.
11. Disconnect deployment tool fly lead from
airbag.
12. Remove airbag module from holding tools and
place in a sealed bag, ready for disposal.
13. Wipe down holding tools with a damp cloth and
remove from vice.
14. Transport deployed airbag module to
designated area for incineration.
CAUTION: Do not re-use or salvage any
parts of the SRS system.
NOTE: Do not transport deployed SRS
components in the vehicle passenger
compartment.

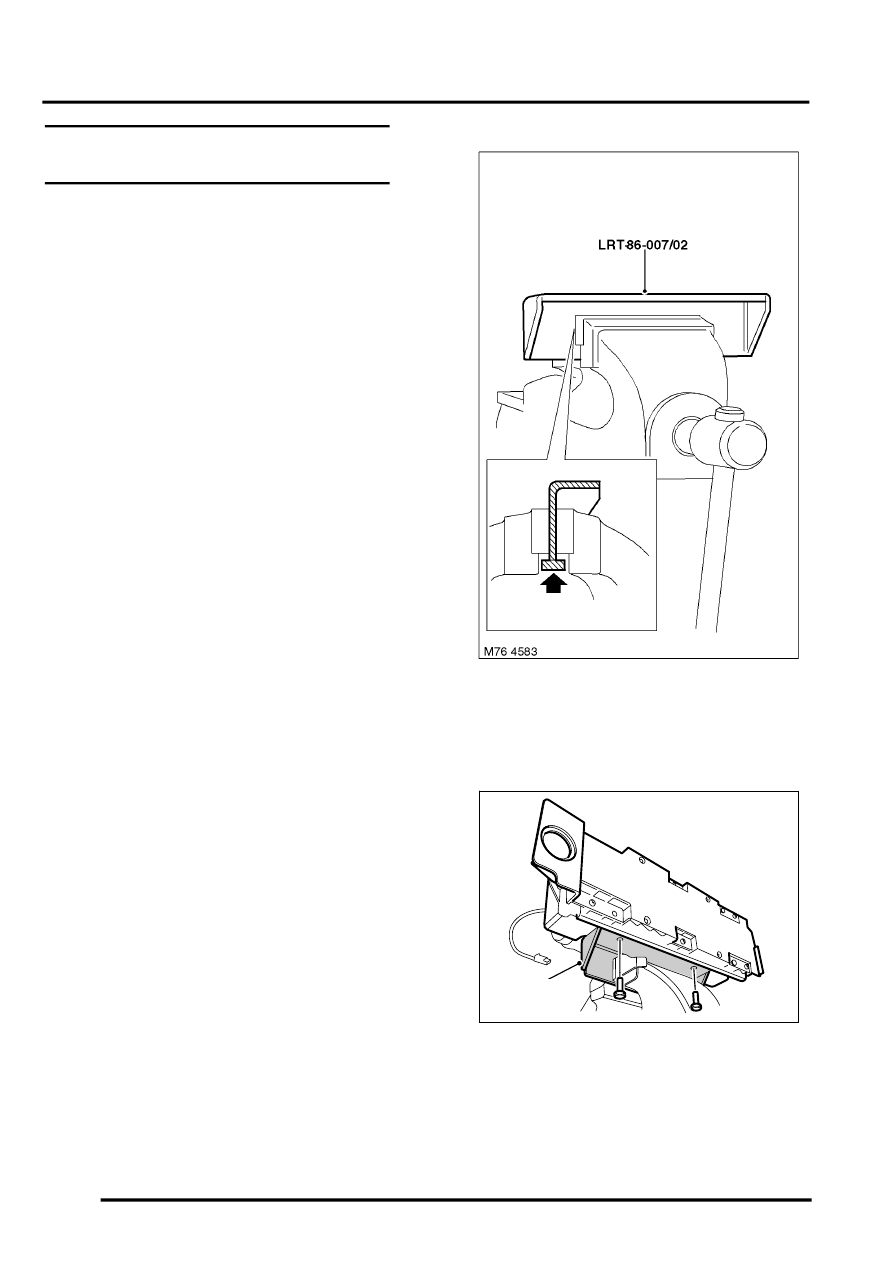

M76 4592A
LRT-86-003
LRT-86-003/05
