L322 Range Rover Service Procedures
RESTRAINT SYSTEMS
75-28
REPAIRS

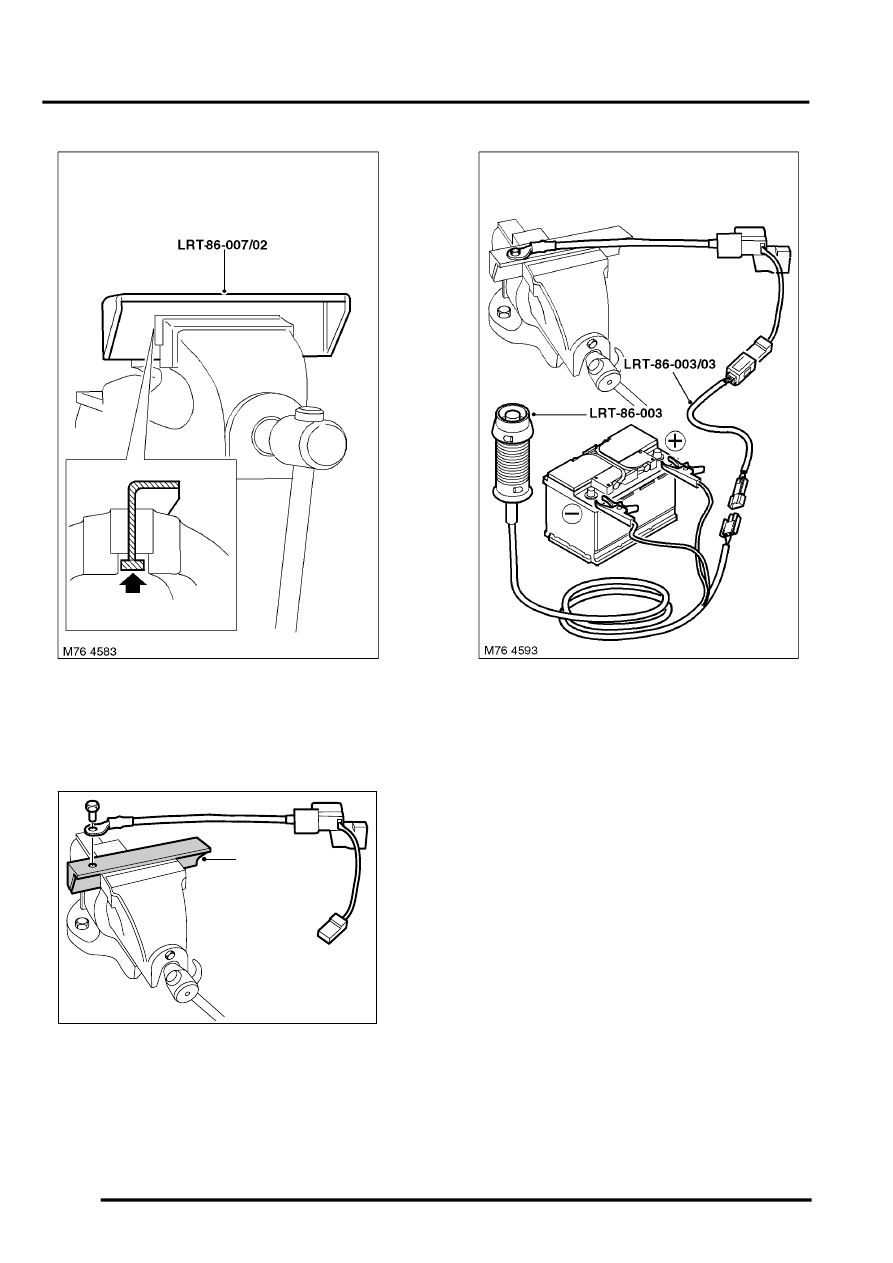

4. Position LRT-86-007/02 in vice, ensuring that
vice jaws grip tool above the bottom flange to
prevent possibility of tool being forced upwards
during detonation. Tighten vice.
5. Fit and secure battery disconnect unit to LRT-
86-007/02.
6. Connect deployment tool fly lead LRT-86-003/
03 to battery disconnect unit.
7. Connect deployment tool LRT-86-003 to
deployment tool fly lead LRT-86-003/03.
8. Connect deployment tool LRT-86-003 to
battery.
WARNING: Ensure all personnel are at least
15 metres (50 feet) away from the airbag
module.
9. Press deployment tool operating button to
deploy battery disconnect unit.
10. Disconnect deployment tool from battery.
WARNING: During deployment parts of the
airbag module become hot enough to burn
you. Wait 30 minutes after deployment
before touching the airbag module.
11. Disconnect deployment tool fly lead from
battery disconnect unit.
12. Remove battery disconnect unit from holding
tool and place in a sealed bag, ready for
disposal.
13. Wipe down holding tools with a damp cloth and
remove from vice.
M76 4594
LRT-86-007/02
