L322 Range Rover Service Procedures
RESTRAINT SYSTEMS
75-16
REPAIRS
7. Remove clip securing centre console heater
duct to HEVAC assembly and remove the
heater duct.

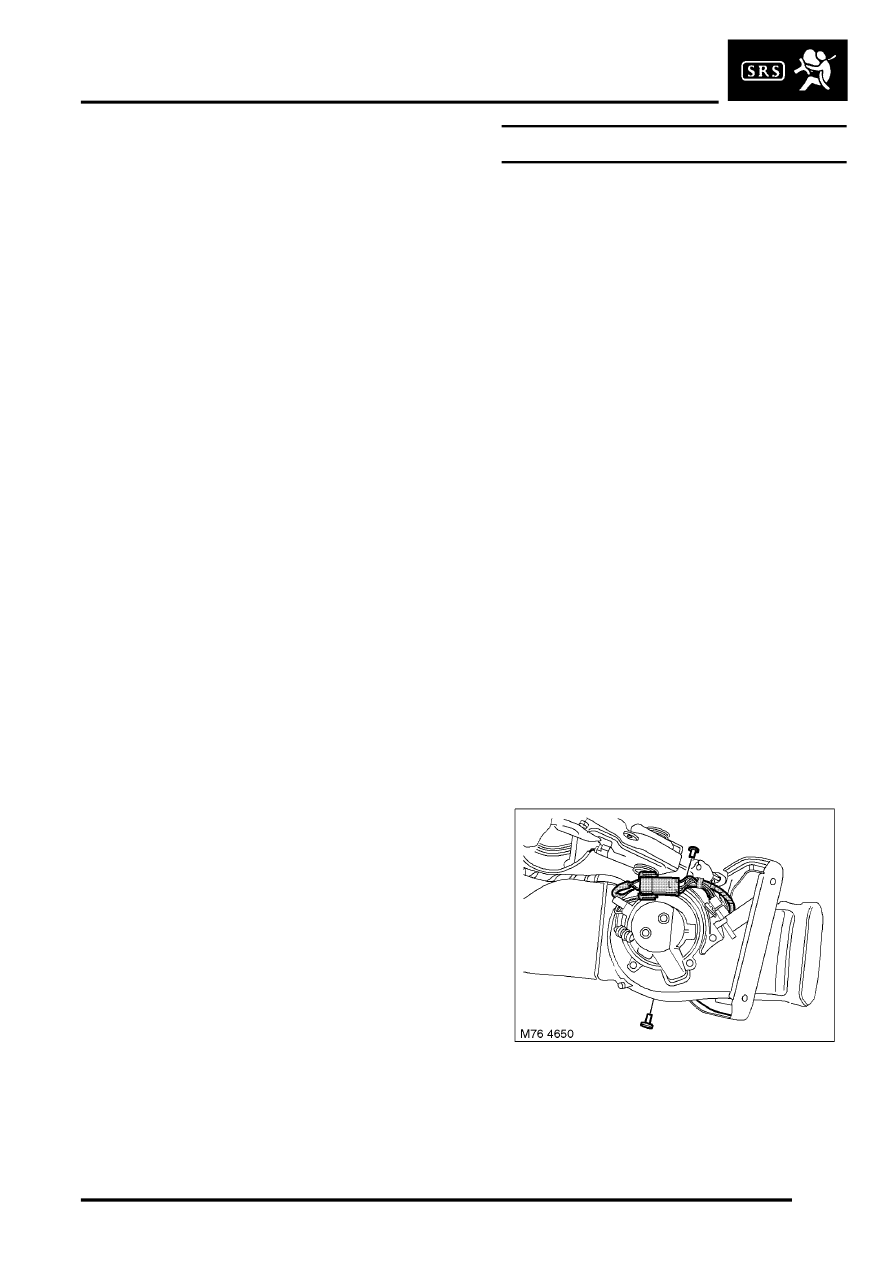

8. Remove 4 bolts securing centre console heater
motor retaining bracket to transmission tunnel.
9. Remove centre console heater motor retaining
bracket.
10. Release and remove DCU cover from DCU.
11. Disconnect multiplug from DCU.
12. Remove nut securing earth lead to DCU.
Remove earth lead.
13. Remove 2 nuts securing DCU to transmission
tunnel. Remove DCU.
CAUTION: The SRS DCU is a shock
sensitive device and must be handled with
care.
Refit
1. Position DCU to transmission tunnel, fit earth
lead, fit nuts and tighten to 10 Nm (7 lbf.ft).
NOTE: If the SRS component is to be replaced,
the bar code of the new unit must be recorded.
2. Connect multiplug to DCU.
3. Fit and secure DCU cover to DCU.
4. Position centre console heater motor retaining
bracket to transmission tunnel, fit bolts and
tighten to 25 Nm (18 lbf.ft).
5. Fit centre console heater duct to HEVAC
assembly and secure with clip.
6. Fit heater motor to mounting bracket and
secure with screws.
7. Connect multiplug to heater motor.
8. Fit air suspension switch panel.
Switch panel - air suspension.
9. Fit centre console.
10. Connect battery leads, earth lead last.
11. Initiate using TestBook/T4.
M76 4656
