Front Seat Belt Pre-Tensioner Deployment Repair Guide
RESTRAINT SYSTEMS
REPAIRS
75-19

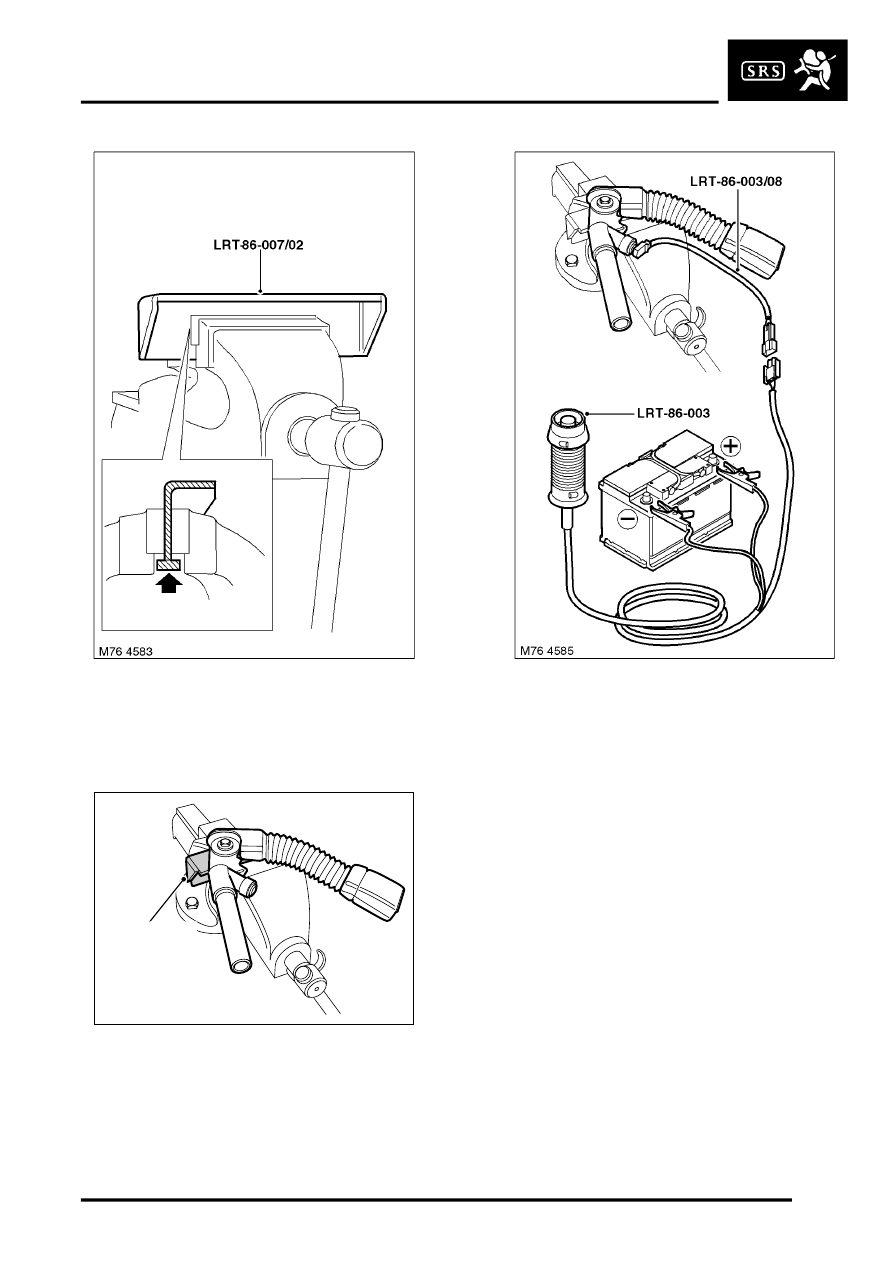

4. Position LRT-86-007/02 in vice, ensuring that
vice jaws grip tool above the bottom flange to
prevent possibility of tool being forced upwards
during detonation. Tighten vice.
5. Fit and secure seat belt pre-tensioner to LRT-
86-007/02.
6. Connect deployment tool fly lead LRT-86-003/
08 to seat belt pre-tensioner.
7. Connect deployment tool LRT-86-003 to
deployment tool fly lead LRT-86-003/08.
8. Connect deployment tool LRT-86-003 to
battery.
WARNING: Ensure all personnel are at least
15 metres (50 feet) away from the airbag
module.
9. Press deployment tool operating button to
deploy seat belt pre-tensioner.
10. Disconnect deployment tool from battery.
WARNING: During deployment parts of the
airbag module become hot enough to burn
you. Wait 30 minutes after deployment
before touching the airbag module.
11. Disconnect deployment tool fly lead from seat
belt pre-tensioner.
12. Remove seat belt pre-tensioner from holding
tool and place in a sealed bag, ready for
disposal.
13. Wipe down holding tools with a damp cloth and
remove from vice.
M76 4584
LRT-86-007/02
