Range Rover P38
44
AUTOMATIC GEARBOX
NEW RANGE ROVER
18
REPAIR

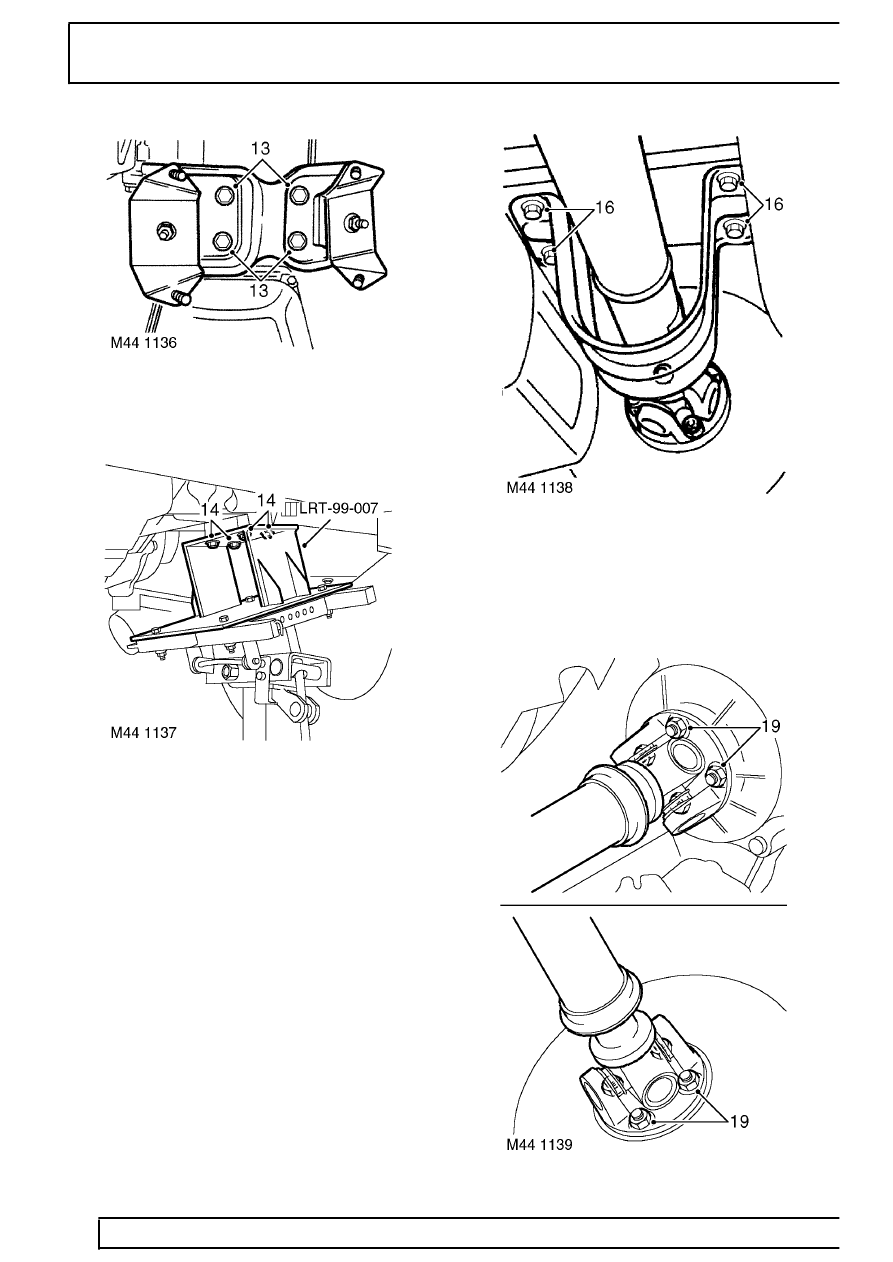

14. Remove 4 bolts securing transmission mounting
assembly and remove assembly.
15. Fit LRT-99-007, to transmission jack and secure
to transmission mounting bracket location holes
with bolts.
16. Remove transmission jack from under brake
drum.
17. Remove 4 bolts securing rear propeller shaft
guard and remove guard.
18. Raise one wheel on each axle to allow rotation
of propeller shafts.
19. Mark transfer box and propeller shaft flanges to
aid re-assembly.
