MG MGF Factory Workshop Manual (1995-2000)05 · Engine
05 · Engine

Crankshaft rear oil seal

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Crankshaft rear oil seal
EngineCrankshaft rear oil seal · page 1 of 2

Refit

  1. Use lint free cloth to thoroughly clean seal recess in oil pump and running surface on crankshaft. Clean crankshaft pulley and gear.

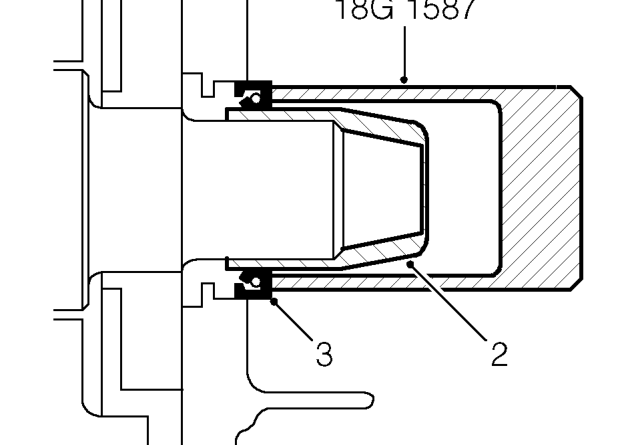

Use lint free cloth to thoroughly clean seal recess in oil pump and running surface on cra
  1. Fit protector, from oil seal kit, over crankshaft end.
  2. Fit new oil seal to crankshaft using tool 18G 1587. Remove protector.

CAUTION: Oil seal must be fitted dry.

  1. Fit crankshaft timing belt gear. See this section.

CRANKSHAFT REAR OIL SEAL

Service repair no - 12.21.20

Remove

  1. Remove flywheel. See this section.
Crankshaft rear oil seal – Remove flywheel. See this section.
  1. Using a burr free flat ended screwdriver, ease crankshaft rear oil seal from cylinder block, remove and discard seal.

CAUTION: Do not mark sealing surface on crankshaft.
