CYLINDER HEAD GASKET - MPi MEMS 1.9 (UP TO 2000MY)

Service repair no - 12.29.02

Remove

  1. Remove and discard camshaft timing belt. See this section.
  2. Remove camshaft cover gasket. See this section.
  3. Remove inlet manifold gasket - MPi. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
Cylinder head gasket - mpi mems 1.9 (up to 2000my) – Remove inlet manifold gasket - MPi. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

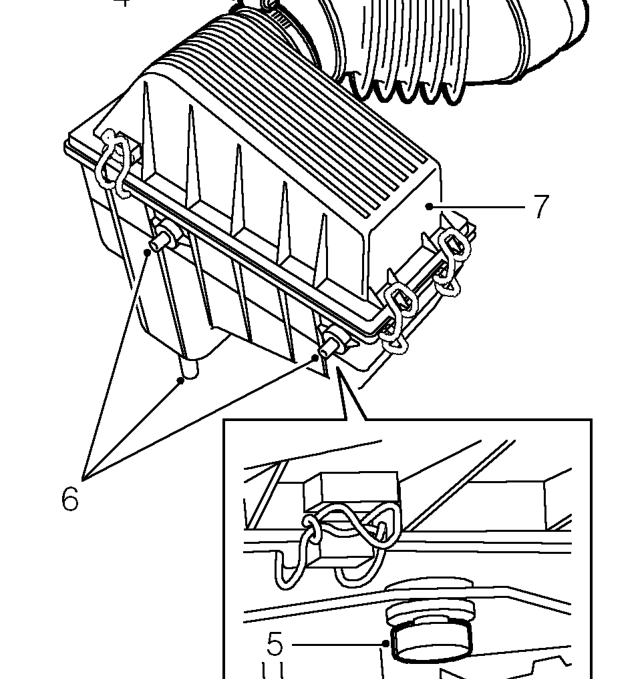

  1. Loosen clip screw and remove air intake hose from air cleaner.
  2. Remove 2 clips securing air cleaner to mounting bracket.
  3. Release 3 air cleaner studs from mounting bracket and release air cleaner from resonator duct.
  4. Remove air cleaner.
Cylinder head gasket - mpi mems 1.9 (up to 2000my) – Remove air cleaner.

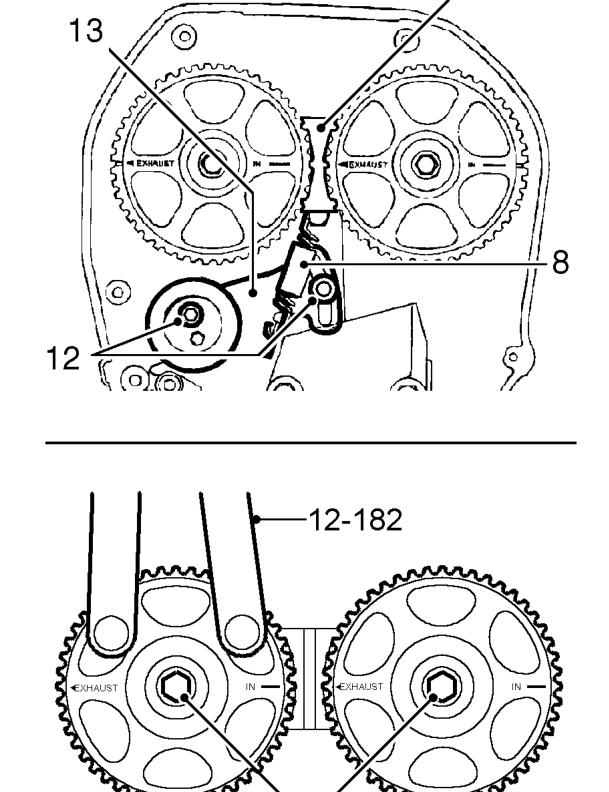

NOTE: Manual timing belt tensioner illustrated.

  1. Manual timing belt tensioner :- Remove camshaft belt tensioner spring.
  2. Mark camshaft gears for fitting reference.
  3. Remove tool 18G 1570.
  4. Restrain camshaft gears using tool 12-182 and remove 2 bolts and plain washers from camshaft gears.

Engines fitted with manual timing belt tensioner

  1. Remove tensioner backplate screw and tensioner pulley Allen bolt.
  2. Remove tensioner pulley assembly.
