EngineCrankshaft pulley - manual gearbox
- Ensure area around camshaft oil seal is clean and free from oil.
- Position cover plate, fit bolts and tighten to 10 Nm.
- Secure CMP harness to cover plate and connect CMP multiplug.
- Fit engine cover. See this section.
- Connect battery earth lead.
CRANKSHAFT PULLEY - MANUAL GEARBOX
Service repair no - 12.21.01
Remove
- Disconnect battery earth lead.
- Raise rear of vehicle.
WARNING: Support on safety stands.
- Remove road wheel(s).
- Remove alternator drive belt. See ELECTRICAL, Repairs.
- Remove starter motor. See ELECTRICAL, Repairs.

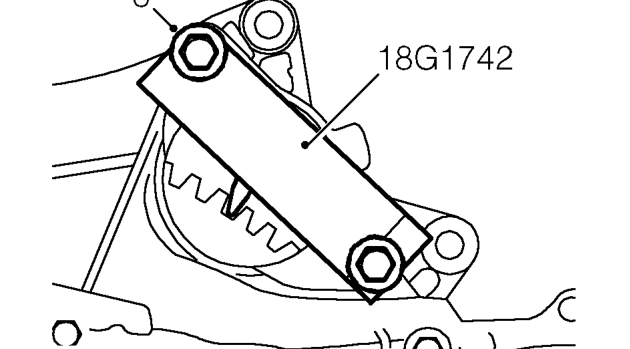

- Lock crankshaft using tool 18G 1742.
