CAMSHAFT TIMING BELT REAR COVER - MPi AND VVC - MANUAL MODELS

Service repair no - 12.65.42

Remove

  1. Remove camshaft timing belt gear. See this section.
  2. Remove bolt securing second cam gear to camshaft and remove gear.
  3. Remove alternator drive belt. See ELECTRICAL, Repairs.
  4. Remove starter motor. See ELECTRICAL, Repairs.
Camshaft timing belt rear cover - mpi and vvc - manual models – Remove starter motor. See ELECTRICAL, Repairs.

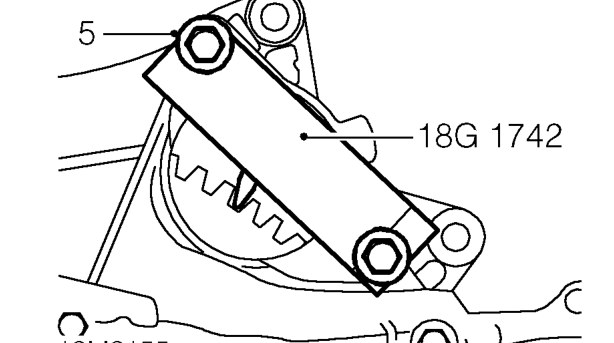

  1. Fit tool 18G 1742, and secure with starter motor bolts.
Camshaft timing belt rear cover - mpi and vvc - manual models – Fit tool 18G 1742, and secure with starter motor bolts.

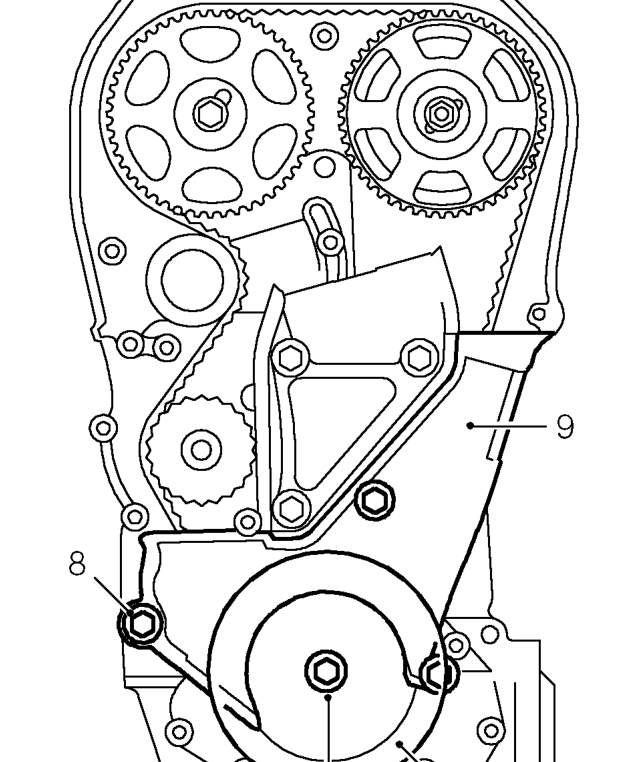

  1. Remove bolt and plain washer securing crankshaft pulley to crankshaft.
  2. Remove crankshaft pulley.
  3. Remove 3 bolts securing timing belt lower front cover to engine.
  4. Remove lower front cover.
