ENGINE MOUNTING - RH

Service repair no - 12.45.12

Remove

  1. Raise RH rear of vehicle.

WARNING: Support on safety stand.

  1. Remove RH rear road wheel.
  2. Remove 2 scrivets and 1 Torx screw securing closing panel.
  3. Remove closing panel.
  4. Support engine on jack.

NOTE: Place block of wood between jack and engine sump to avoid damage occurring.

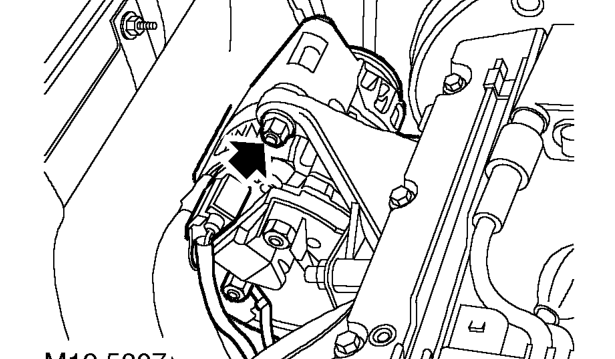

  1. Remove engine cover. See this section.
Engine mounting - rh – Remove engine cover. See this section.

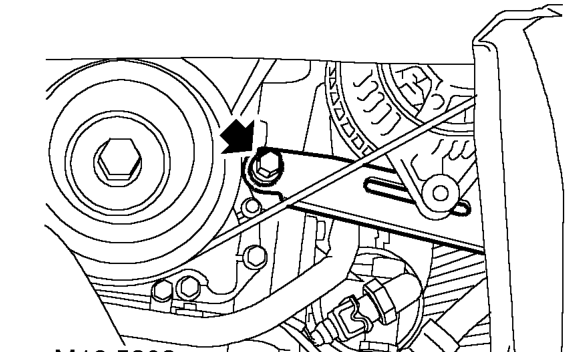

  1. Loosen alternator pivot nut and bolt.
Engine mounting - rh – Loosen alternator pivot nut and bolt.

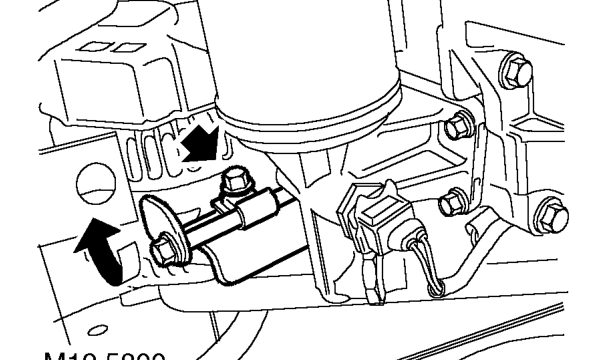

  1. Loosen bolt securing alternator adjustment bracket.
Engine mounting - rh – Loosen bolt securing alternator adjustment bracket.
  1. Loosen bolt securing alternator to adjustment bracket.
  2. Rotate alternator drive belt adjustment bolt anti-clockwise to release tension from belt.
  3. Release and remove drive belt from pulleys.

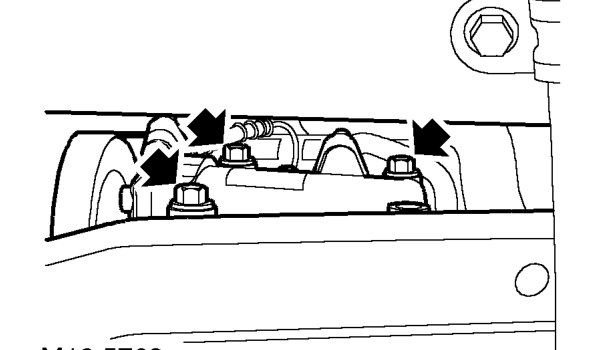

  4. Models with A/C: Remove alternator drive belt. See ELECTRICAL, Repairs.
Engine mounting - rh – Models with A/C: Remove alternator drive belt. See ELECTRICAL, Repairs.
  1. Loosen 3 bolts securing A/C compressor to mounting bracket and position compressor aside.
