Sensor - oil temperature

SENSOR - OIL TEMPERATURE

Service repair no - 12.60.65

Remove

1. Disconnect battery earth lead.
2. Raise rear of vehicle.

WARNING: Support on safety stands.

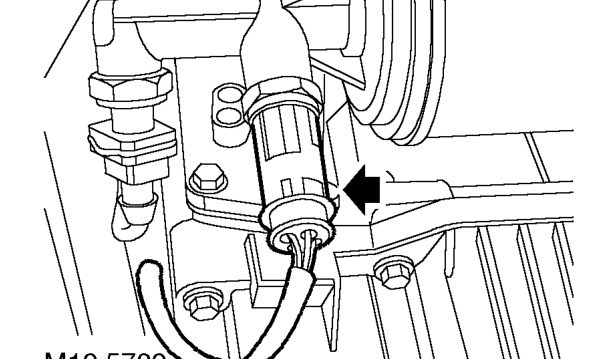

3. Disconnect multiplug from oil temperature sensor.
4. Position drain tin below switch to catch oil spillage.
5. Remove oil temperature sensor.

Refit

1. Clean oil temperature sensor threads.
2. Fit oil temperature sensor and tighten to 15 Nm.
3. Connect multiplug to oil temperature sensor.
4. Remove stand(s) and lower vehicle.
5. Connect battery earth lead.
6. Check and if necessary top up engine oil.

CAMSHAFT TIMING BELT - MPi MEMS 1.9 (UP TO 2000MY)

Service repair no - 12.65.18

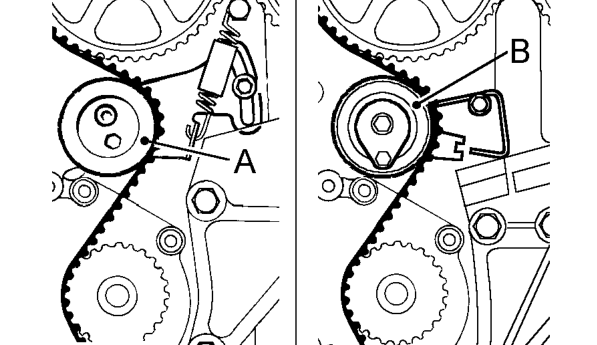

NOTE: Two types of timing belt tensioner are fitted, type A is a manual tensioner, type B is an automatic tensioner. The tensioners and their timing belts are not interchangeable.

CAUTION: Timing belts must be replaced if cylinder head is to be removed or new timing gears, tensioner or coolant pump are to be fitted. Timing belts must be stored and handled with care. Always store a timing belt on its edge with a bend radius greater than 50 mm. Do not use a timing belt that has been twisted or bent double as this can damage the reinforcing fibres. Do not use a timing belt if debris other than belt dust is found in timing cover. Do not use a timing belt if partial engine seizure has occurred. Do not use a timing belt if belt mileage exceeds 48,000 (77,000 km). Do not use an oil or coolant contaminated timing belt.

NOTE: The cause of contamination MUST be rectified.
