ENGINE MOUNTING - REAR

Service repair no - 12.45.17

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Support engine on jack.

CAUTION: Place block of wood between sump and jack to avoid damage occurring.

Engine mounting - rear – Support engine on jack.
  1. Remove nut and bolt securing mounting to sump.
  2. Remove bolt securing mounting to subframe.
  3. Remove mounting.

Refit

  1. Position mounting to subframe, fit bolt but do not tighten.
  2. Align mounting to sump bracket, fit bolt and tighten to 85 Nm.
  3. Tighten bolt securing mounting to subframe to 85 Nm.
  4. Remove jack.
  5. Remove stand(s) and lower vehicle.

ENGINE MOUNTING - LH - MANUAL GEARBOX MODELS

Service repair no - 12.45.11

Remove

  1. Support engine with jack.

CAUTION: Place a piece of wood between engine and jack to avoid damage.

  1. If fitted, remove air intake resonator. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

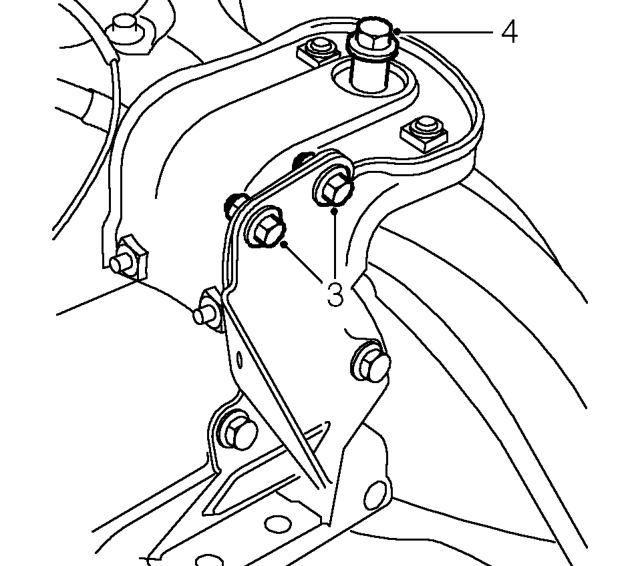

Engine mounting - lh - manual gearbox models – If fitted, remove air intake resonator. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Remove 2 upper bolts securing clutch slave cylinder bracket to engine mounting bracket.
  2. Remove centre bolt from engine mounting.
