MG MGF Factory Workshop Manual (1995-2000)05 · Engine
05 · Engine

Crankshaft pulley - sequential auto (EM-CVT)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Crankshaft pulley - sequential auto (EM-CVT)
EngineCrankshaft pulley - sequential auto (EM-CVT)

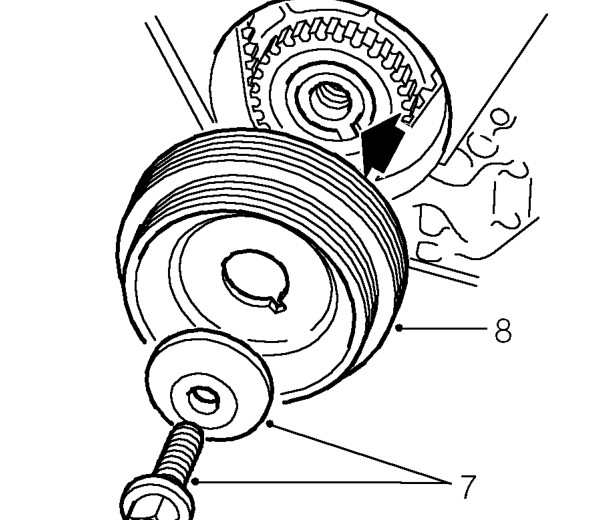

Diagram
  1. Remove crankshaft pulley bolt and washer.
  2. Remove crankshaft pulley.

Refit

  1. Clean crankshaft to pulley mating faces.
  2. Fit crankshaft pulley.
  3. Fit crankshaft washer and tighten centre bolt to 205 Nm.
  4. Remove crankshaft locking tool 18G 1742.
  5. Fit starter motor. See ELECTRICAL, Repairs.
  6. Fit alternator drive belt. See ELECTRICAL, Repairs.
  7. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  8. Remove stand(s) and lower vehicle.
  9. Connect battery earth lead.

CRANKSHAFT PULLEY - SEQUENTIAL AUTO (EM-CVT)

Service repair no - 12.21.01

Remove

  1. Disconnect battery earth lead.
  2. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove alternator drive belt. See ELECTRICAL, Repairs.
  3. Remove starter motor. See ELECTRICAL, Repairs.

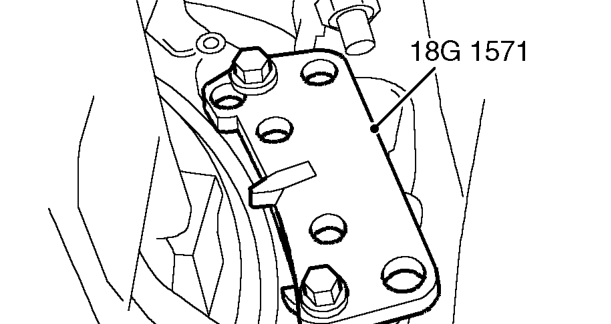

Crankshaft pulley - sequential auto (em-cvt) – Remove starter motor. See ELECTRICAL, Repairs.
  1. Lock crankshaft using tool 18G 1571.

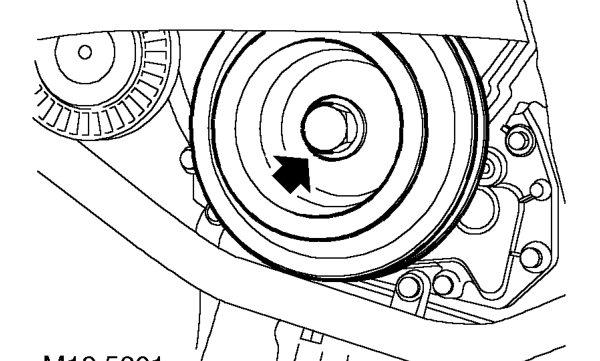

Crankshaft pulley - sequential auto (em-cvt) – Lock crankshaft using tool 18G 1571.
  1. Remove crankshaft pulley bolt and washer.
  2. Remove crankshaft pulley.
