CRANKSHAFT TIMING BELT GEAR

Service repair no - 12.65.25

Remove

  1. Remove and discard camshaft timing belt. See this section.

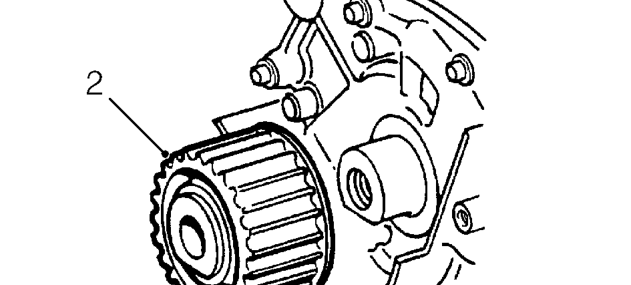

Crankshaft timing belt gear – Remove and discard camshaft timing belt. See this section.
  1. Remove crankshaft timing belt gear.

Refit

  1. Clean timing gear mating faces.
  2. Fit crankshaft timing belt gear.
  3. Fit new camshaft timing belt. See this section.

TIMING BELT UPPER FRONT COVER

Service repair no - 12.65.41

Remove

  1. Remove engine cover. See this section.

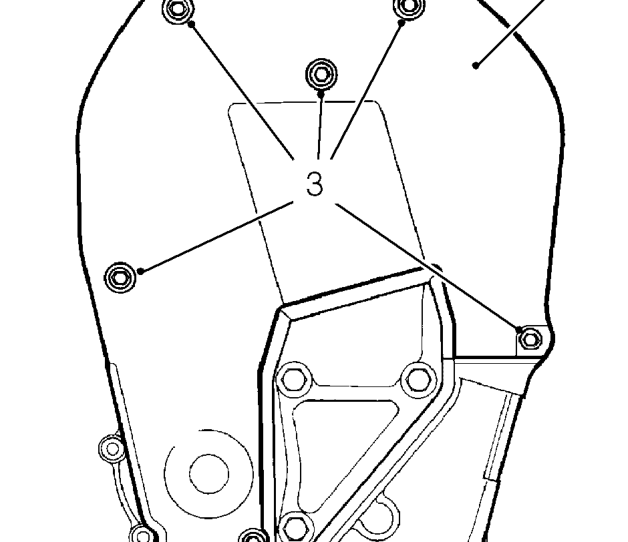

Timing belt upper front cover – Remove engine cover. See this section.
  1. Loosen lower fixing bolt securing timing belt upper front cover.
  2. Remove 5 bolts from timing belt upper front cover.
  3. Remove timing belt upper front cover and seal.

Refit

  1. Fit timing belt upper front cover, ensuring seal is located correctly.
  2. Fit bolts and tighten to 9 Nm.
  3. Fit engine cover. See this section.
