Crankshaft front oil seal

Refit

1. Clean crankshaft to pulley mating faces.
2. Fit crankshaft pulley.
3. Fit crankshaft washer and tighten centre bolt to 205 Nm.
4. Remove crankshaft locking tool 18G 1571.
5. Fit starter motor. See ELECTRICAL, Repairs.
6. Fit alternator drive belt. See ELECTRICAL, Repairs.
7. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, General data.
8. Remove stand(s) and lower vehicle.
9. Connect battery earth lead.

CRANKSHAFT FRONT OIL SEAL

Service repair no - 12.21.14

Remove

1. Remove crankshaft timing belt gear. See this section.

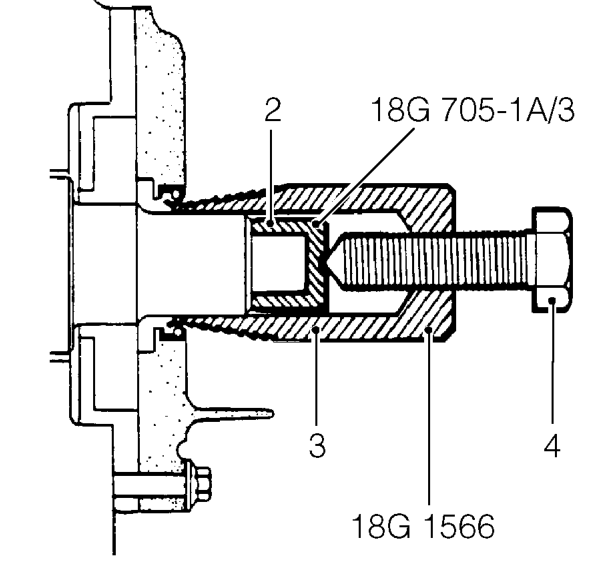

2. Fit thrust button tool 18G 705-1A/3 to crankshaft.
3. Ensure bore of tool is burr free, fit and tighten tool 18G 1566 into crankshaft front oil seal.
4. Tighten centre screw of tool to remove oil seal.
5. Remove thrust button from crankshaft.
