ENGINE AND GEARBOX ASSEMBLY - SEQUENTIAL AUTO (EM-CVT)

Service repair no - 12.37.01/99

Remove

  1. Disconnect battery earth lead.
  2. Remove engine compartment access panel. See BODY, Exterior fittings.
  3. Remove engine cover. See this section.
  4. Drain transmission fluid. See AUTOMATIC GEARBOX - ’EM-CVT’, Adjustments.
  5. Drain cooling system. See COOLING SYSTEM, Adjustments.
  6. Models with A/C: Evacuate A/C system. See AIR CONDITIONING, Adjustments.
Engine and gearbox assembly - sequential auto (em-cvt) – Models with A/C: Evacuate A/C system. See AIR CONDITIONING, Adjustments.

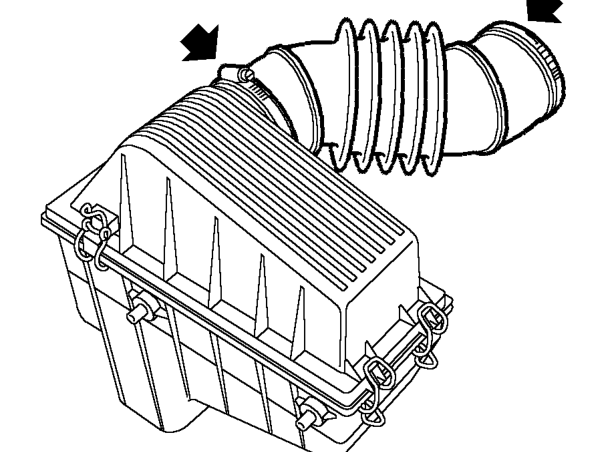

  1. Release clips securing air intake pipe between air cleaner and throttle body.
  2. Remove air intake pipe.
Engine and gearbox assembly - sequential auto (em-cvt) – Remove air intake pipe.

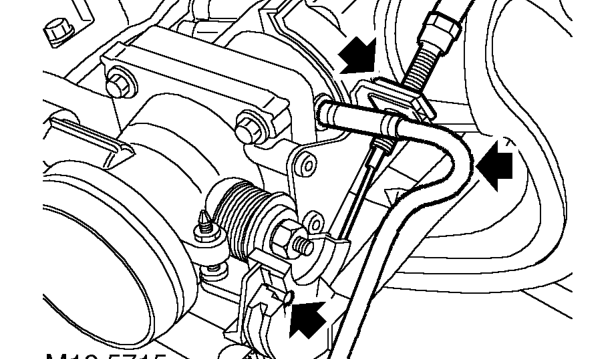

  1. Release clip and pipe running from evaporative emission cannister purge valve to throttle body.
  2. Disconnect throttle cable from throttle body abutment and throttle cam.
  3. Release throttle cable from inlet manifold clip and position cable aside.
Engine and gearbox assembly - sequential auto (em-cvt) – Release throttle cable from inlet manifold clip and position cable aside.

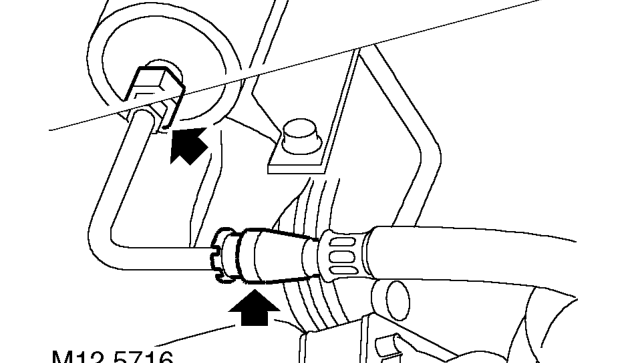

  1. Position absorbent cloth around fuel filter, loosen union to relieve fuel pressure, retighten to 30 Nm.
  2. Release quick release connector securing fuel pipe to injector rail hose.
  3. Evacuate hydragas system. See SUSPENSION, Adjustments.
