Engine and gearbox assembly - sequential auto (EM-CVT) (page 5 of 9)

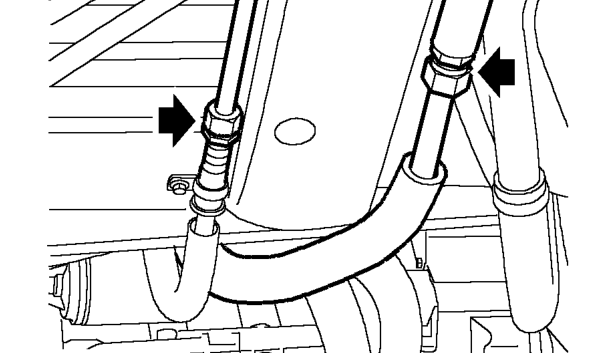

40. Models with A/C: Loosen A/C pipe unions under vehicle and release pipes.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

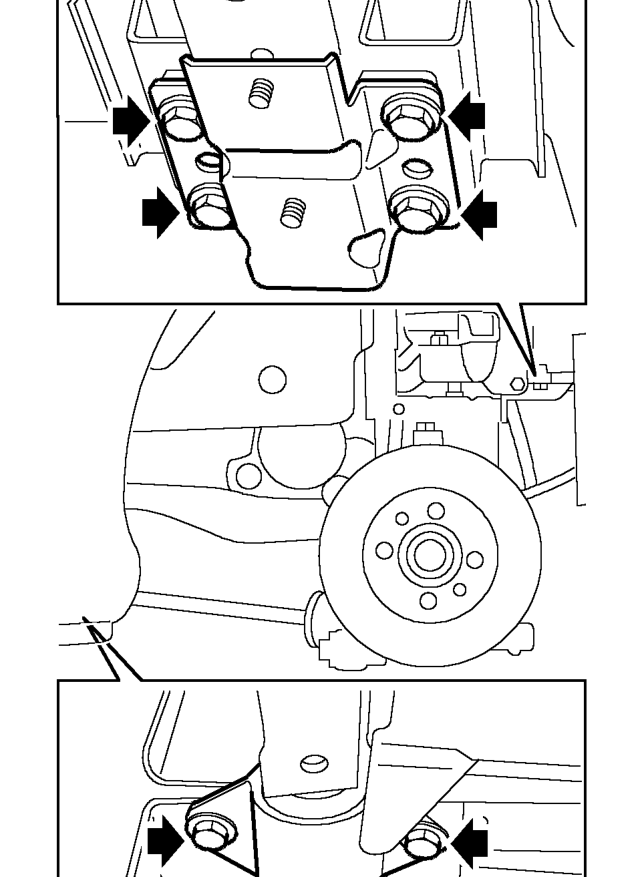

41. Place engine table underneath rear of car, and lower ramp. When engine and rear subframe are supported by table, remove 4 front bolts, and 6 rear bolts securing subframe to body.
42. Collect rear anti-roll bar mounting brackets.
43. Carefully raise ramp and guide engine and subframe from body.

CAUTION: Ensure subframe is securely held on engine table.
