EngineEngine and gearbox assembly - sequential auto (EM-CVT) · page 4 of 9
Diagram

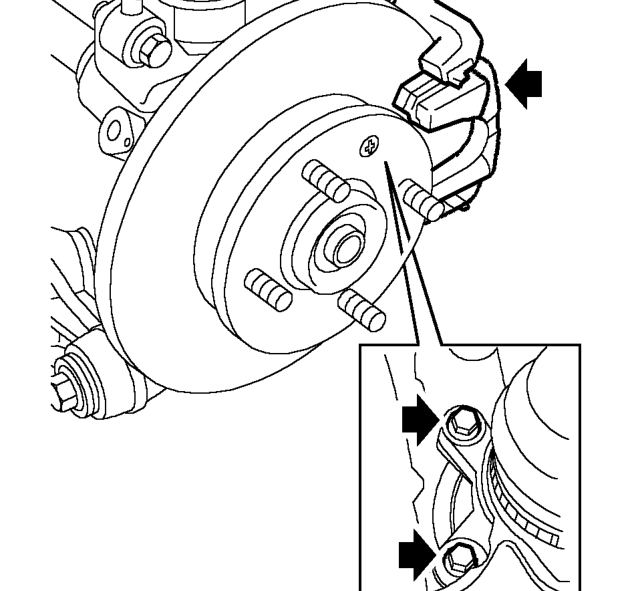

  1. Remove 2 bolts securing rear LH brake caliper to hub. Release caliper and tie aside.
  2. Remove 2 bolts securing rear RH brake caliper to hub. Release caliper and tie aside.
  3. Remove tail pipe heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
Remove tail pipe heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

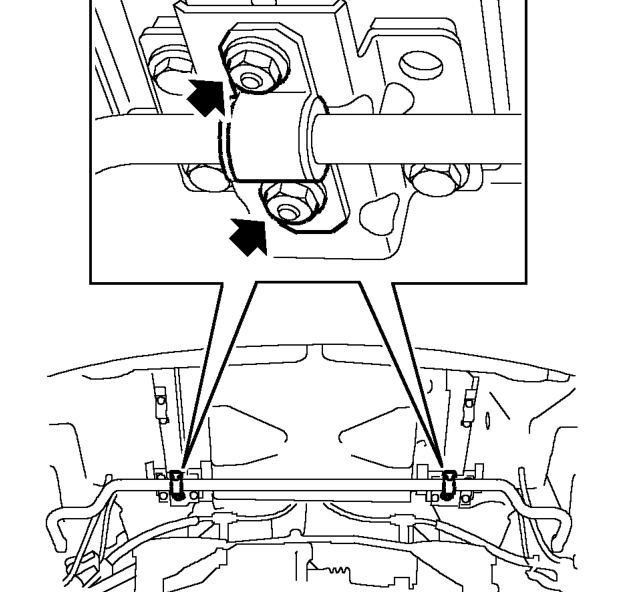

  1. Remove 4 nuts securing anti-roll bar bushes to body.
Remove 4 nuts securing anti-roll bar bushes to body.

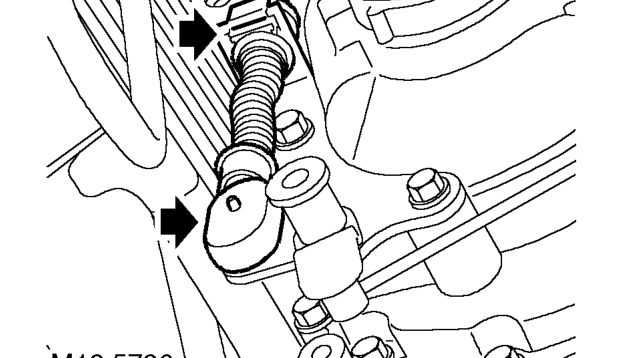

  1. Release selector cable from selector linkage.
  2. Release selector cable from abutment bracket and position cable aside.
Release selector cable from abutment bracket and position cable aside.

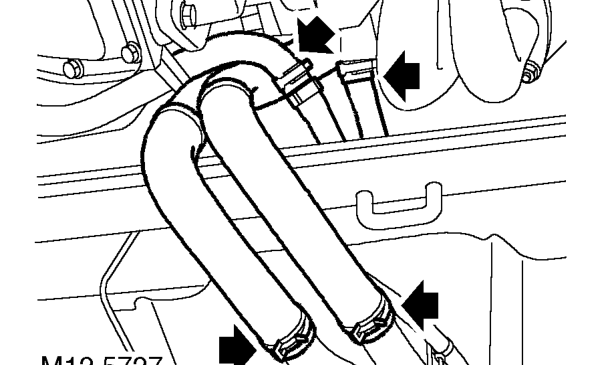

  1. Release clips securing coolant hoses to coolant rail under vehicle, and release hoses.
  2. Release clips securing heater hoses under vehicle and release hoses.
