EngineEngine and gearbox assembly - sequential auto (EM-CVT) · page 8 of 9
Diagram
  1. Remove nut and bolt securing gearbox mounting to buttress.
Remove nut and bolt securing gearbox mounting to buttress.

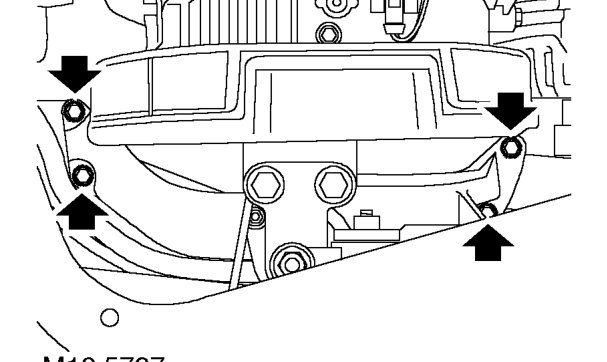

  1. Remove 4 bolts securing RH buttress to sub frame.
Remove 4 bolts securing RH buttress to sub frame.

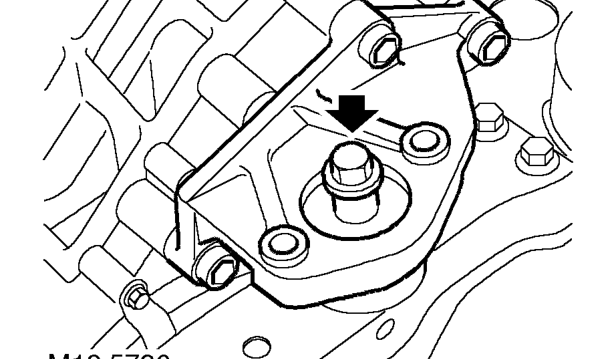

  1. Remove bolt securing rear engine steady to bracket on sump.
  2. With assistance, raise and remove engine and gearbox from subframe.
  3. Lower engine and gearbox assembly, disconnect hoist from 18G 1598.
