MG MGF Factory Workshop Manual (1995-2000)05 · Engine
05 · Engine

Engine and gearbox assembly - sequential auto (EM-CVT) (page 3 of 9)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
EngineEngine and gearbox assembly - sequential auto (EM-CVT) · page 3 of 9
Diagram

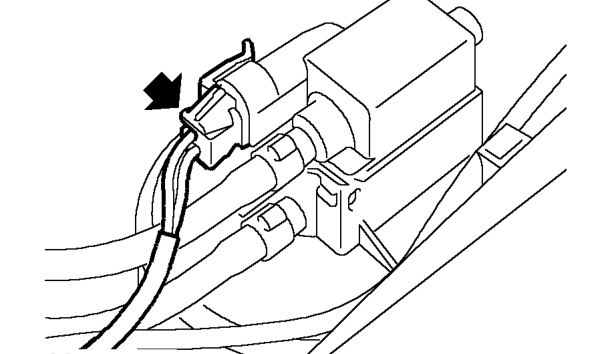

  1. Disconnect cannister purge valve multiplug.
Disconnect cannister purge valve multiplug.

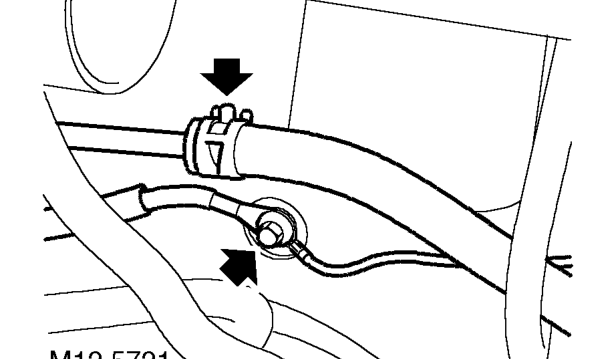

  1. Remove engine harness earth bolt from body and release 2 earth leads.
  2. Disconnect fuel return hose.
Disconnect fuel return hose.

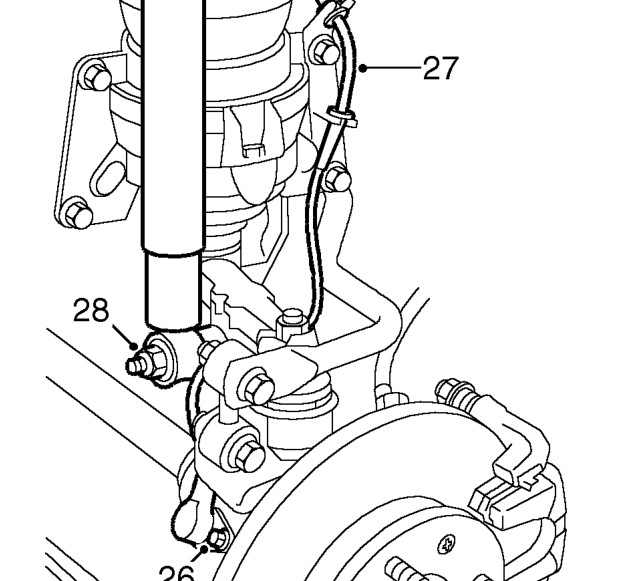

  1. Raise vehicle on a 2 post ramp.
  2. Remove road wheel(s).
  3. Remove 2 bolts securing ABS sensors, release sensors and collect sensor spacers.
  4. Release LH and RH rear ABS sensor leads from clips.
  5. Remove nuts and bolts securing dampers to upper arms.
Remove nuts and bolts securing dampers to upper arms.

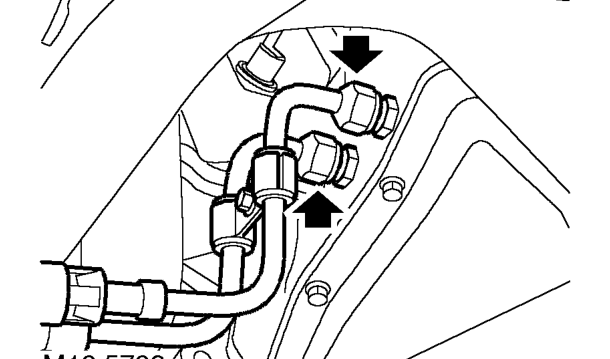

  1. Loosen unions and disconnect fluid cooler pipes from gearbox.

CAUTION: Plug the connections.
