EngineEngine and gearbox assembly - sequential auto (EM-CVT) · page 7 of 9
Diagram

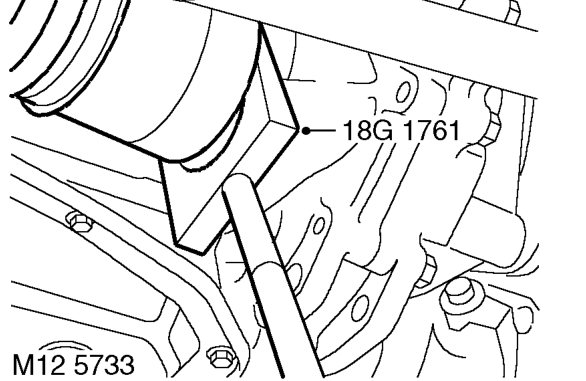

  1. Using tool 18G 1761, release drive shaft from differential.
  2. Remove hub assembly and drive shaft.
  3. Repeat hub assembly and drive shaft removal for opposite hand.
Repeat hub assembly and drive shaft removal for opposite hand.

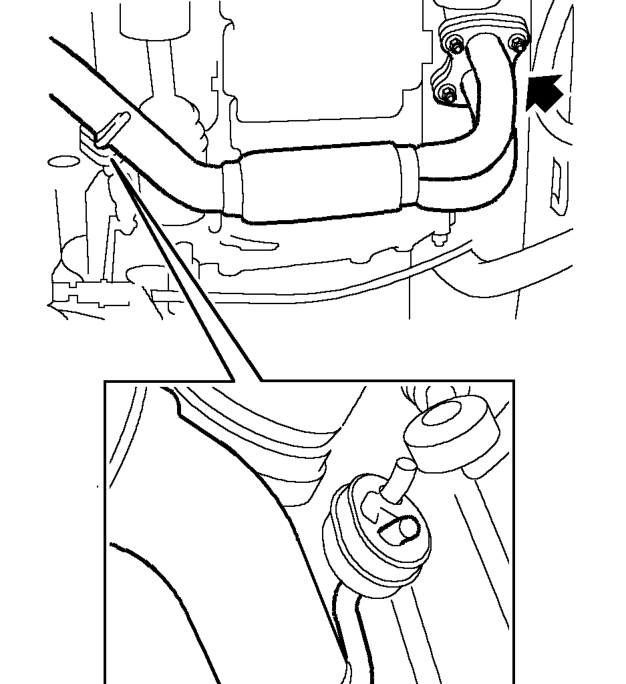

  1. Remove nuts securing exhaust manifold to front pipe.
  2. Release front pipe from exhaust manifold and support rubber and remove front pipe. Collect gasket.
Release front pipe from exhaust manifold and support rubber and remove front pipe. Collect

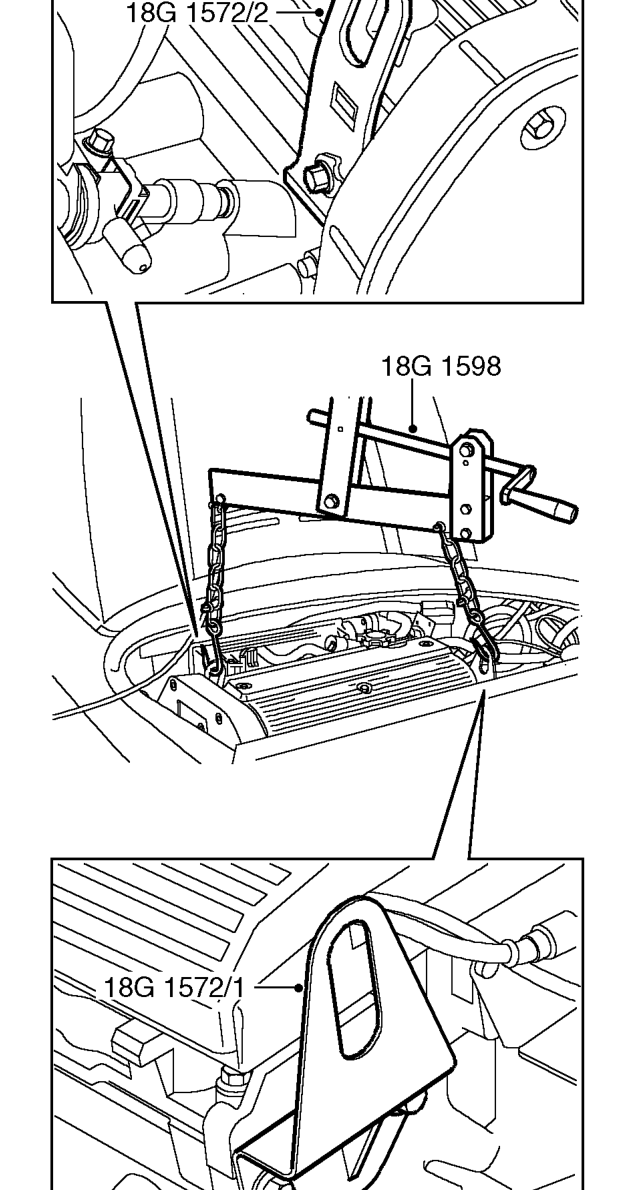

  1. Fit lifting brackets 18G 1572/1 and 18G 1572/2 to cylinder head and tighten bolts to 9 Nm.
  2. Fit adjustable lifting equipment 18G 1598 to lifting brackets.
  3. Connect hoist to 18G 1598 and raise hoist to take weight of engine and gearbox.
