MG MGF Factory Workshop Manual (1995-2000)05 · Engine
05 · Engine

Engine and gearbox assembly - sequential auto (EM-CVT) (page 6 of 9)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
EngineEngine and gearbox assembly - sequential auto (EM-CVT) · page 6 of 9
Diagram

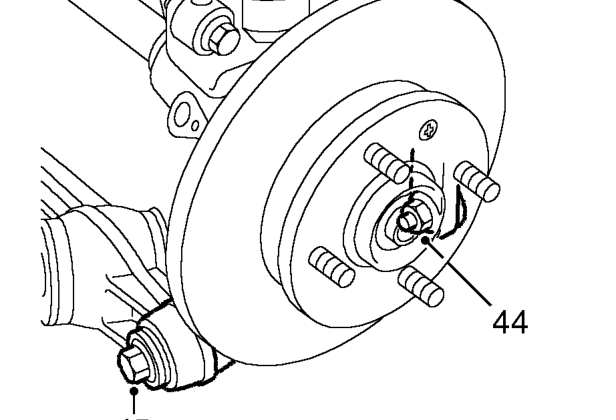

  1. Remove bolt securing lower arm to hub assembly.
  2. Release nut securing track control rod to hub assembly.
Release nut securing track control rod to hub assembly.

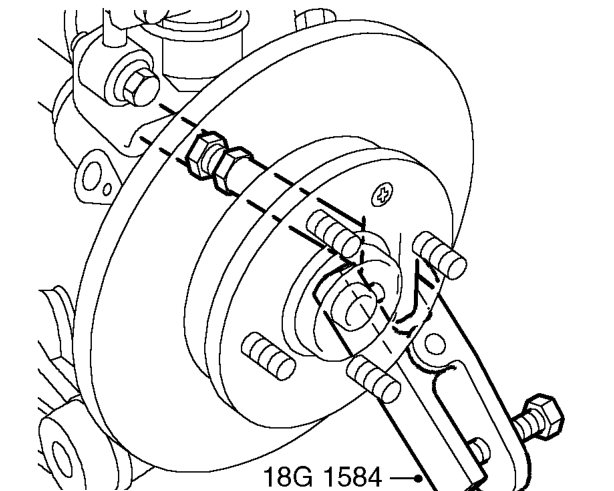

  1. Release taper joint using tool 18G 1584.
Release taper joint using tool 18G 1584.

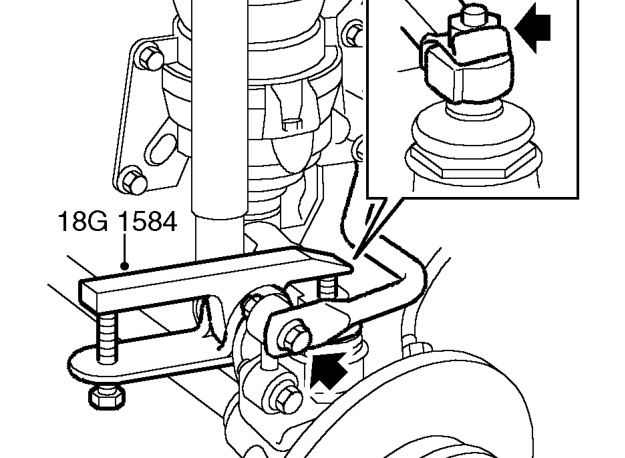

  1. Remove bolt securing anti-roll bar link to anti-roll bar.
  2. Bend back tab washer on upper ball joint.
  3. Remove nut and tab washer securing upper ball joint to hub, discard tab washer.
  4. With the hub assembly supported, break upper ball joint taper using tool 18G 1584.
With the hub assembly supported, break upper ball joint taper using tool 18G 1584.

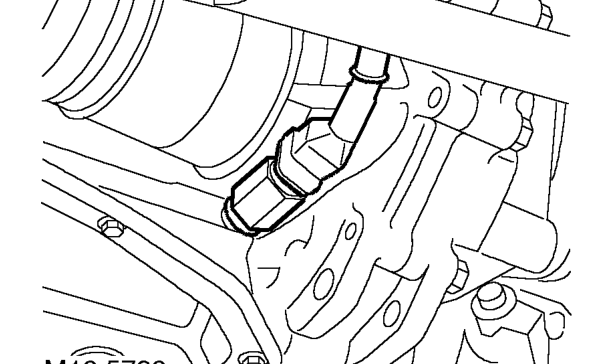

  1. Disconnect multiplug from starter inhibitor/reverse switch and release lead from clip.
  2. Remove inhibitor/reverse switch from gearbox.
